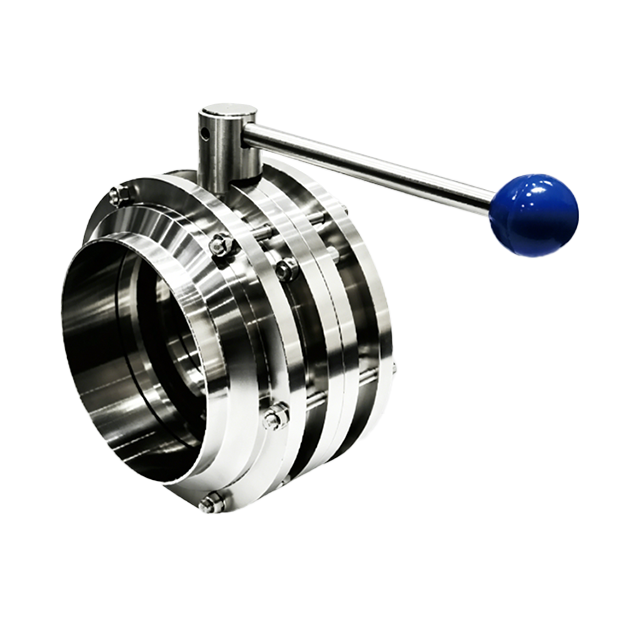

Three-Piece Sanitary Butterfly Valve

Name: Three-Piece Sanitary Butterfly Valve
Brand: FLOWX
Rating: 5.0 (74 reviews)

- Founded in 2006, FLOWX has become China's largest valve and actuator manufacturer.
- The products have passed ISO9001 and CE certification.
- The valve life is guaranteed for 5 years.
- We provide one-stop sourcing service for you.
- The dozens of series of ball valves, butterfly valves, electric actuators, pneumatic actuators, and accessories.

- Nominal Pressure: PN10/PN16
- Temperature Range: -40°C to 100°C
- Connection Standards: Clamp (ASME BPE)
- Welding: DIN 11850 / ASME
- Testing Standards: BPE, GB/T 13927, API 598
- Applicable Media: Water, liquids containing ≤50% ethylene glycol/propylene glycol

Availability:



Inquire Add to Basket

Brand:
FLOWX

PRODUCT DESCRIPTION

FLOWX company main produce: Three-Piece Sanitary Butterfly Valve

(Please contact us Get Free Quote Now. )

Features & Benefits

Stainless steel butterfly valves are designed to shut off or regulate the flow of media within pipelines. Available with either welded or sanitary quick-clamp connections, they are suitable for applications such as liquid cooling systems and water supply/drainage.
Low flow resistance
Easy to maintain
Low operating torque
Oil-free and degreased

Technical Specifications

Parameter	Specification
Nominal Pressure	PN10 / PN16
Temperature Range	-40°C ~ 100°C
Connection Standard — Clamp	ASME BPE
Connection Standard — Welded	DIN 11850 / ASME
Test Standard	BPEGB/T 13927/API598
Media	Water; liquids with ethylene glycol or propylene glycol concentration ≤50%

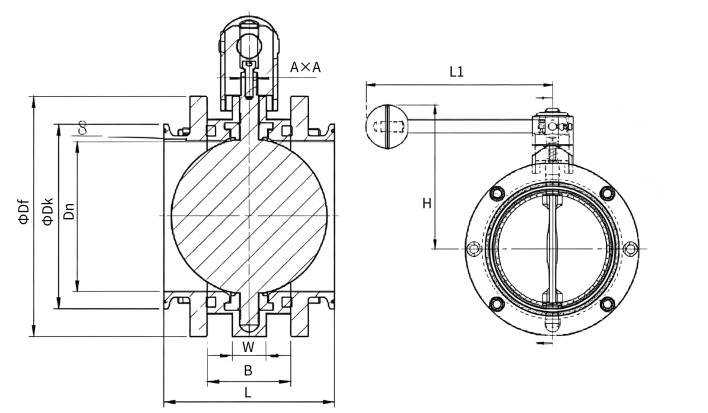

Clamp Quick-install Three-piece Manual Butterfly Valve, ISO

Clamp Quick-install Three-piece Manual Butterfly Valve-ISO

SIZE	Dn	Dk	Df	L	L1	H	A×A	W	B
19	15.8	34	78	110	135	80	8×8	20	54
25	21.8	50.5	78	110	135	80	8×8	22	54
32	28.6	50.5	78	110	135	80	8×8	22	54
38	34.8	50.5	85	110	135	85	8×8	22	54
51	47.8	64	100	110	135	95	8×8	22	54
63	60.3	77.5	110	110	160	100	10×10	22	54
76	72.9	91	125	110	160	110	10×10	22	54
102	97.6	115	155	110	160	130	10×10	22	54
133	129	145	185	140	192	145	14×14	26	70
159	153	183	215	140	219	160	14×14	26	70
219	213.9	233.5	285	160	295	195	14×14	36	80

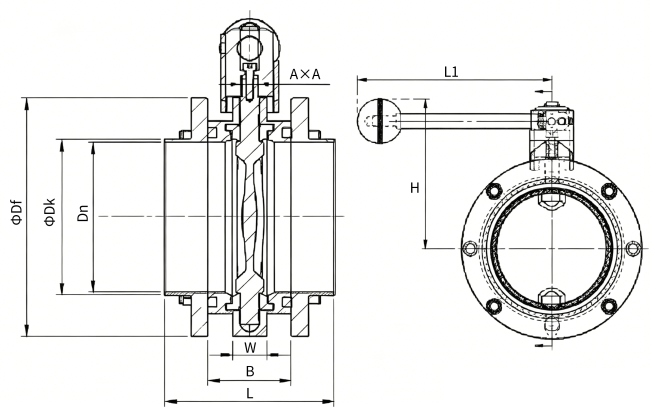

Welded Three-piece Manual Butterfly Valve, 3A

Welded Three-piece Manual Butterfly Valve-3A

SIZE	Dn	Dk	Df	L	L1	H	A×A	W	B
0.75″	15.8	19.1	78	110	135	80	8×8	20	54
1″	22.1	25.4	78	110	135	80	8×8	22	54
1.25″	28.5	31.8	78	110	135	80	8×8	22	54
1.5″	34.8	38.1	85	110	135	85	8×8	22	54
2″	47.5	50.8	100	110	135	95	8×8	22	54
2.5″	60.2	63.5	110	110	160	100	10×10	22	54
3″	72.9	76.2	125	110	160	110	10×10	22	54
4″	97.4	101.6	155	110	160	130	10×10	22	54
5″	129	133	185	140	192	145	14×14	26	70
6″	146.5	152.4	215	140	219	160	14×14	26	70
8″	198	203.2	285	160	295	195	14×14	36	80
10″	248	254	325	160	315	215	14×14	36	80
