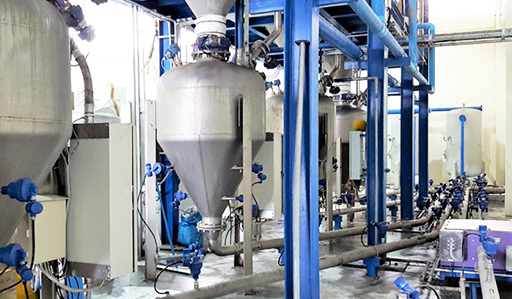

Plastic Industry (Pneumatic Conveying)

Plastic Industry (Pneumatic Conveying):

A plastic conveying system is an automated system which moves said material from point A to point B – with point B generally being a single or multiple discharge point(s).

Plastic industry equipment mainly includes::

Hybrid machinery and equipment, pipe production line

Valves used include::

pneumatic/manual flapper valve, electric/pneumatic/manual butterfly valve, pneumatic ball valve
VIP customers currently working with
Project Case

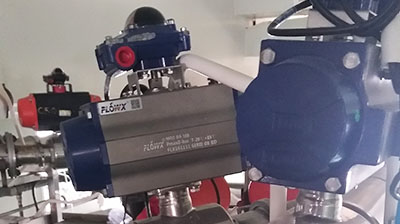

Pneumatic ball valve for plastic Industry

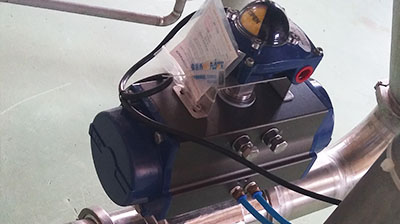

Pneumatic ball valve for plastic Industry

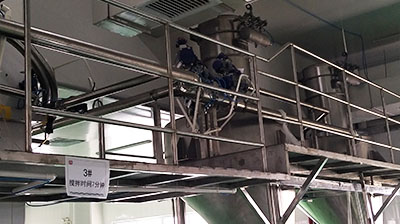

Pneumatic ball valve for plastic Industry

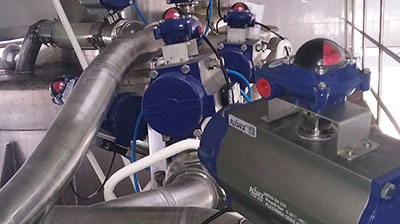

Pneumatic ball valve for plastic Industry

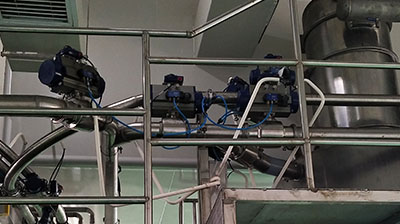

Pneumatic ball valve for plastic Industry

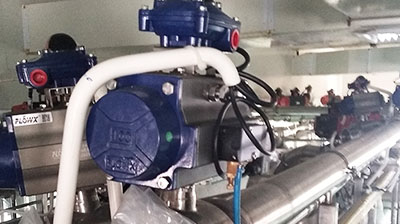

Pneumatic ball valve for plastic Industry
Products
Electric actuator specifcation: ON-OFF TYPE, 4- 20MA regulator type function Explosive-proof or non explosive proof.
Voltage  available: DC12,DC24V,AC110V,AC220V,AC240,AC380V
Running times: 10S, 30S, 60S

Pneumatic actuator specification: Double acting/single acting Pneumatic actuator, NAMUR mount Airline. Anodized aluminum actuator, working air pressure: 6-7Bars, rack & pinion type.

Valve structure: Threaded(two pieces,three pieces)
Valve size: DN10~DN100
Valve Body: WCB, SS304, SS316, SS316L
Valve Ball: SS304, SS316, SS316L
Valve Pressure: PN10,PN16, ANSICL150/CL300/CL600, JIS10K/20K
Working Temperature: -15~150℃
Working media: Seawater, Cooling water, Wastewater, pure water

Electric actuator specifcation: ON-OFF TYPE, 4- 20MA regulator type function Explosive-proof or non explosive proof.
Voltage  available: DC12, DC24V, AC110V, AC220V, AC240, AC380V
Running times: 10S, 30S, 60S

 Pneumatic actuator specification: Double acting /single acting Pneumatic actuator, NAMUR mount Airline. Anodized aluminum actuator, working air pressure: 5-7Bars, rack & pinion type.

Valve structure: wafer type
Valve size: DN40~DN1200
Valve Body: WCB, Ductile iron, SS304, SS316,
Valve Disc: Aluminum bronze C954, SS304, SS316
Valve Seat: EPDM,NBR
Valve Pressure: PN10, PN16, ANSICL150/CL300/CL600, JIS10K/20K
Working Temperature: -15~85℃
Working media: Seawater, Cooling water, Wastewater, pure water

Non return Check Valve
Non return Check Valve
Body: Ductile Iron, WCB or SS304, SS316
Disc: Aluminum bronze C954, SS304,SS316
Seat: NBR, Metal hard
Presure: ANSICL150,PN10  PN16,JIS10K 20K
End connection: Wafer
Working Temperature: -15~120℃
Working media: Seawater, Cooling water, Wastewater, pure water

Globe Valve
Material: WCB, SS304, SS316
Seat: Metal hard
Pressure: PN10, PN16, ANSICL150, ANSICL300, JIS10K
End connection: Flange, Thread.
Working Temperature: -15~120℃
Working media: Seawater, Cooling water, Wastewater, pure water

Electric actuator specifcation: ON-OFF TYPE, 4- 20MA regulator type function Explosive-proof or non explosive proof.
Voltage  available: DC12,DC24V,AC110V,AC220V,AC240,AC380V
Running times: 10S, 30S, 60S

Pneumatic actuator specification: Double acting /single acting Pneumatic actuator, NAMUR mount Airline. Anodized aluminum actuator, working air pressure: 6-7Bars, rack & pinion type.

Valve structure: RF /FM Flanges
Valve size: DN15~DN200
Valve Body: WCB,SS304,SS316,SS316L
Valve Ball: SS304, SS316, SS316L
Valve Pressure: PN10, PN16, ANSICL150/CL300/CL600, JIS10K/20K
Working Temperature: -15~150℃
Working media: Seawater, Cooling water, Wastewater, pure water

Electric actuator specifcation: ON-OFF TYPE, 4- 20MA regulator type function Explosive-proof or non explosive proof.
Voltage  available: DC12, DC24V, AC110V, AC220V, AC240, AC380V
Running times: 10S, 30S, 60S

 Pneumatic actuator specification: Double acting /single acting Pneumatic actuator, NAMUR mount Airline. Anodized aluminum actuator, working air pressure: 5-7Bars, rack & pinion type.

Valve structure: Flange type
Valve size: DN50~DN1000
Valve Body: WCB,Ductile iron,SS304,SS316,
Valve Disc: Aluminum bronze C954,SS304,SS316
Valve Seat: EPDM,NBR
Valve Pressure: PN10, PN16, ANSICL150/CL300/CL600, JIS10K/20K
Working Temperature: -15~85℃
Working media: Seawater, Cooling water,Wastewater, pure water

Swing Check Flange Valve
Body: WCB or SS304,SS316
Disc: SS304, SS316
Seat: Metal hard
Presure: ANSICL150, PN10  PN16, JIS10K 20K
End connection: Flange
Working Temperature: -15~120℃
Working media: Seawater, Cooling water, Wastewater, pure water

Flexible Rubber Joint
Body: WCB, SS304, SS316
Rubber: Natual Rubber, EPDM, NBR Single ball or two balls
End connection: PN10/PN16/ANSICL150/300/JIS10K
Temperature: -15~85℃
