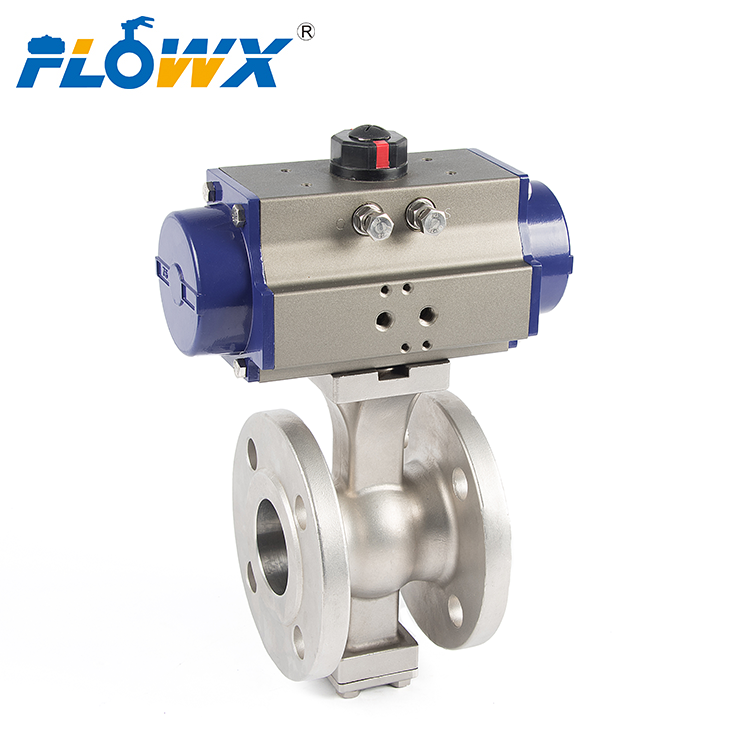

Pneumatic V Type Control Ball Valve for Sulphur

1.Equal percentage flow characteristics, adjustable ratio up to 100:1.
2.V type ball valves are suitable for frequent operation and quick opening and closing.
3.V type ball valves are simple in structure, small in size, light in weight and easy to maintain.

  • FP20V1422E
  • Flowx
  • 8481202000

Wafer Connection Motorized V Notch Control Ball Valve

Stainless Steel Ball Valve.jpg





Stainless Steel Ball Valve.jpg



.jpg



Wafer Connection Mortorized V Notch Control Ball Valve is the quarter turn valve, primarily intended as a control valve, V segment ball valve is in V-notch design with strong cutting force and self-cleaning, especially suitable for the controlling of medium containing fiber and tiny solid. Therefore,it is widely used in the auto-control system in industries such as pulp and paper, chemical industry, petroleum, chemical fiber, power, metallurgy, pharmacy, enviromenttal protection.



Design Features



1. Single-piece Valve Body

V Segment valve have single-piece body, which prevents leaks caused by separate flanges.



2. Bearings

V-ball adapt the upper and lower stem to fixed by bearings. Bearings are by composite material, it have good lubricating, strong abrasion performance, high mechanical stability, small torque for opening, to ensure the valve with excellent senstivity and sensor speed.



3. Movable Seat

V-ball valve adapt the belleville washer or column spring loaded movable seat structure, the seat can make the best contact with the disc by the springs' return force, and has good sealing performance. PTFE seat and metal seat are available for difference application requirements.



4. V Segment ball

Specially designed V-segment ball provides equal percentage flow characteristic with high precision control performance as well as strong cutting force and self-cleaning function.



5. Low Capacity

For Super-low flow applications, low capacity valve are available with DN25 for precise control.



6. ISO5211 Direct Mounting Pad

V Segment Valve built with ISO5211 direct mounting pad. It conveniently connect with various kind of drive, such as the handle,worm gear, pneumatic actuators, electric actuators, hydraulic actuators, etc.



V type-05.jpg



Stainless Steel Ball Valve.jpg





Technical Dimensions

 technical dimension.jpg





Trade Shows

company information

FAQ



Q: Are you a trading company or a manufacturer ?
A: We are a manufacturer. We have our own factory in Shanghai.

Q: How long is your delivery time?
A: Generally it is 5-10 days for stock products, or 15-20 days for producing goods, different delivery time due to the different quantities.

Q: Do you provide samples ? Is it free of charge?
A: We can provide the charge samples.

Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shippment.

Q: What's the payment?
A: T/T, L/C, Western Union, Paypal & Cash are accepted.

Q:Can you produce according to customers' design ?
A: No, we can't produce according to customer's design, but we can add the logo and do the customer's package.

Customer Visiting

 customer visiting.jpg



Packaging & Shipping



packing

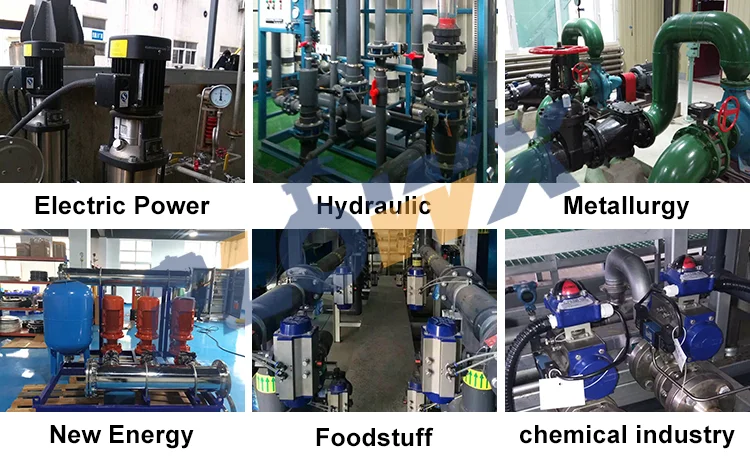

Application
