PRODUCT DETAIL

Pneumatic Ball Valve Italy Focus

Flowx pneumatic automated ball valves are available with double acting or spring return (specify fail-open or fail-close action). Valve Position Limit Switches and Speed Controls. All models are pre-sized for clean water, air, or light oil applications. Spring return valves use air pressure to open the valve and springs (failsafe) to close the valve. When coupled with a solenoid, pneumatic actuators also can produce torque to move cylinders or enough torque to trigger small electric devices.
  • F2000I223E3
  • FLOWX
  • 8481804909

Flowx pneumatic automated ball valves are available with double acting or spring return (specify fail-open or fail-close action). Valve Position Limit Switches and Speed Controls. All models are pre-sized for clean water, air, or light oil applications. Spring return valves use air pressure to open the valve and springs (failsafe) to close the valve. When coupled with a solenoid, pneumatic actuators also can produce torque to move cylinders or enough torque to trigger small electric devices.



Related Products

3-Piece-Clamp-Ball-Valves-400-400                3-way stainless steel flanged pneumatic ball valve

        Pneumatic 3-Piece Clamp Ball Valves            3-way Stainless Steel Flanged Pneumatic Ball Valve


Pneumatic-Actuator-Way-Stainless-Steel-Ball-Valve-400-400                    Pneumatically-Piece-Thread-Ball-Valves-400-400

         Pneumatic Actuated 3 Way Ball Valve                   Pneumatic 2-Piece Thread Ball Valves


Pneumatically-True-Union-Ball-Valves-400-400                   Pneumatically-V-Type-Flanged-Ball-Valves-400-400

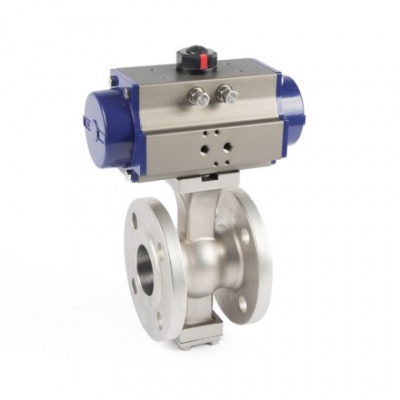

           Pneumatic True Union Ball Valves                Pneumatic V-Type Flanged Ball Valves


Pneumatically-Way-Thread-Ball-Valves-400-400                  Three-pieces-ball-valve1-400-400

        Pneumatic 3-Way Thread Ball Valves                  Pneumatic 3-Piece Thread Ball Valves


Trunnion Mounted Ball Valve Manufactuers in China                 Y type stainless steel pneumatic ball valve

Trunnion Mounted Ball Valve Manufactuers in China  Y Type Stainless Steel Pneumatic Ball Valve



Specification


Pneumatic automated ball valve

1)Size:1/2" - 10"

2)Pressure: PN10-PN40

3)Body:WCBCF8(304)CF3(304L)CF8M(316)CF3M (316L)Ti

4)Disc:304,304L,316,316L

5)Seat:PTFE,PPL

6)Connection:Flanged,Threaded, Union,Clamp

7)Operated Type:Pneumatic Actuator


Features of Actuator


  1. Heavy duty Rack and pinion design

  2. Spring return or double acting

  3. Open and closed adjustment stops

  4. True NAMUR accessory and ISO mounting

  5. Visual indicator,Top Mount indicator

  6. High temperature and corrosion resistant models available

  7. Solenoids,limit swithces, positioners and other accessories are available



Drawings


drawing

Accessories


          Photo               Model Code                      Description
Pneumatic-Actuator4-400-400






               FLXDA52 DA63




Quarter Turn Double Acting Pneumatic Actuator have this feature.
1.Rack and pinion actuator available in doubule acting spring returnicals.
2.Standard units have anodized aluminum bodies with polyster coated end caps.
3.Inte
rnal bidirectional travel stops.
4.Seacorr coating for harsh enviroments.
5.SIL3 capable.
6.Inregral porting.
7.NAMUR accessory compatible.
