4V320-10 Air Control Pneumatic Solenoid Valve

- Founded in 2006, FLOWX has become China's largest valve and actuator manufacturer.
- The products have passed ISO9001 and CE certification.
- The valve life is guaranteed for 5 years.
- We provide one-stop sourcing service for you.
- The dozens of series of ball valves, butterfly valves, electric actuators, pneumatic actuators, and accessories.

  • FLOWX
  • FLX-003 005

  Product Description


4V320-10 Air Control Pneumatic Solenoid Valve
4V320-10 Air Control Pneumatic Solenoid Valve
4V320-10 Air Control Pneumatic Solenoid Valve2
4V320-10 Air Control Pneumatic Solenoid Valve
4V320-10 Air Control Pneumatic Solenoid Valve (2)
4V320-10 Air Control Pneumatic Solenoid Valve
4V320-10 Air Control Pneumatic Solenoid Valve (3)
4V320-10 Air Control Pneumatic Solenoid Valve




Product Features:

  • 1.FLXC series solenoid valve is mainly used in the pneumatic actuators,

  • 2.FLXC series have FLXC2/5, FLXC2/3(Single control) and FLXC2/5-S  and FLXC2/3-S(Double control)

  • 3.Thread size range from M5 to 1/2". According to the ISO288-1, ISO4026 and ISO1302 standards.

  • 4.FLXC series namur valves are famous for the superior quality and the stable function.

  • 5.Ideal for a variety of pneumatic actuator applications, including petrochemical, pulp and paper, filling equipment, food processing and water treatment.


  • Ideal for use on FLOWX spring return and double pneumatic acting actuators.

  • Adopt the special-purpose O type to enclose, twice needn’t be lubricated.

  • The inside uses the wear-resisting part, stable life cycle, guaranteed 12000000 times Various voltage and working style are available different surface treatment,

  • thread types (BSPP, BSPT, NPT) are available.

  • The manual switch designed, can test in situ after cutting out.



Design Features:

  • Pilot operated spool valve technology

  • 3/2 or 5/2 field convertible

  • High flow 1.4 Cv

  • Integral push-button manual override

  • LED power indicator (standard)

  • Rapid response time (up to 4 cycles/sec)

  • 100% continuous duty cycle

  • Ideal for use on FLOWX spring return and double pneumatic acting actuators.

  • Adopt the special-purpose O type to enclose, twice needn’t be lubricated.

  • The inside uses the wear-resisting part, stable life cycle.

  • Guaranteed 12000000 times Various voltage and working style are available different surface treatment.

  • Tthread types (BSPP, BSPT, NPT) are available.

  • The manual switch designed, can test in situ after cutting out.


  Product photo

4V320-10 Air Control Pneumatic Solenoid Valve (4)




  Technical Parameters

Model

FLXC2/5, FLXC2/3(Single control)

FLXC2/5-S  and FLXC2/3-S(Double control)

Working Medium Clean air (after 25μm filtration)
Acting Type Pilot type
Sectional Area 30mm2(CV=1.68)
Port Size IN=G3/8"  EXHAUST=G1/4"
Lubrication Not Required
Working Pressure 1.5-8bar
Guaranteed Pressure  12bar
Working Temperature -5℃~60℃
Voltage Range -15%~10%
Power Consumption AC:5.5W    DC:4.8W
Protective Class IP65
Max. acting frequency 4 cycles/s
Activate time 0.05s
Insulation Class F
Weight 300g 409g

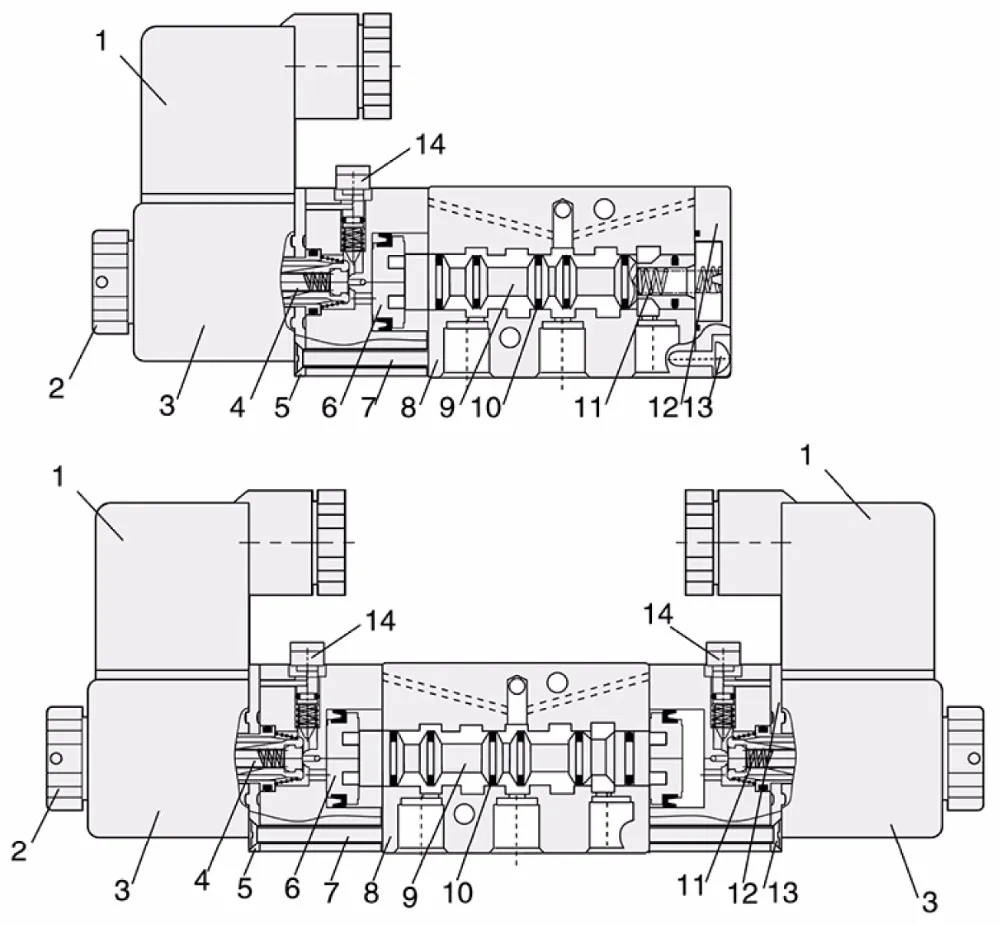

  FLXC-Series NAMUR Solenoid Valve Internal Structure:


4V320-10 Air Control pneumatic Solenoid Valve NO. Designation
1 Connector
2 Nut
3 Coil
4 Pilot units
5 Plate
6 Piston
7 Screw
8 Valve Body
9 Spool
10 O-ring
11 Spring
12 Rear cover
13 Screw
14 Manual Override
Part Name Material
Valve Body Aluminum Alloy
Spool Aluminum Alloy
Manual Override O-ring NBR
Connector Washer NBR
Spool O-ring HNBR
Seal NBR
Piston POM
Manual Override Plastic
Plate Steel
Nut POM + Carbon Steel
Manual Override Spring Stainless Steel
Spool Spring Stainless Steel
Screw Steel
Pilot units Pure Steel + Cu + Stainless Steel
Connector Engineering Plastic


  FLX-Series NAMUR Solenoid Valve Main Dimension (mm):

4V320-10 Air Control Pneumatic Solenoid Valve (5)

 Production Flow

FLX-2 Series Air Fillter Regulator Metal Design Production Flow

4V320-10 Air Control Pneumatic Solenoid Valve Production Flow

FLX-2 Series Air Fillter Regulator Metal Design Production Flow

4V320-10 Air Control Pneumatic Solenoid Valve Production Flow

OEM Production Flow

OEM Production Flow

  Application

Pneumatic Lt Lug Type Butterfly Valve
Pneumatic Lt Lug Type Butterfly Valve
Pneumatic Lt Lug Type Butterfly Valve
Pneumatic Lt Lug Type Butterfly Valve
Pneumatic Actuator True Union Ball Valve
Pneumatic Actuator True Union Ball Valve
Pneumatic Actuator True Union Ball Valve
Pneumatic Actuator True Union Ball Valve
Pneumatic Powder Butterfly Valve
Pneumatic Powder Butterfly Valve
Pneumatic Ventilation Butterfly Valve
Pneumatic Ventilation Butterfly Valve
