FLX-2 Series Air Fillter Regulator Metal Design

- Founded in 2006, FLOWX has become China's largest valve and actuator manufacturer.
- The products have passed ISO9001 and CE certification.
- The valve life is guaranteed for 5 years.
- We provide one-stop sourcing service for you.
- The dozens of series of ball valves, butterfly valves, electric actuators, pneumatic actuators, and accessories.
Availability:
  • FLOWX

  • FLX-003 005

  Product Description

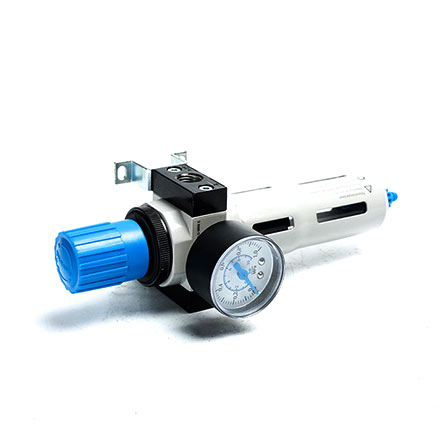

FLX 2 Series Air Fillter Regulator Metal Design
FLX 2 Series Air Fillter Regulator Metal Design
FLX 2 Series Air Fillter Regulator Metal Design
FLX 2 Series Air Fillter Regulator Metal Design
FLX 2 Series Air Fillter Regulator Metal Design
FLX 2 Series Air Fillter Regulator Metal Design
FLX 2 Series Air Fillter Regulator Metal Design
FLX 2 Series Air Fillter Regulator Metal Design




Product Features:

  • Space-saving design with filter and regulator in a single unit

  • Good particle separation and high flow rate

  • Good regulating characteristics with minimal hysteresis

  • Two pressure regulation ranges: 0.5 -7 bar and 0.5 -12 bar

  • Two pressure gauge connectors for flexible installation

  • With manual, semi-automatic or fully automatic condensate drain

  • Setting values are secured by locking the rotary knob

  • Choice of filter cartridges: 5 μm or 40 μm

  • Pressure sensor (optional)


FLXY-2 General Technical Data:

Pneumatic connection  G1/4
Operating medium Compressed air
Design Filter regulator with/without pressure gauge
Type of mounting  Via accessories
In-line installation
Assembly position  Vertical±5°
Regulator lock  Rotary knob with detent
Grade of filtration(μm) 5 or 40
Max. hysteresis(bar)  0.2
Max. hysteresis(bar)  0.5-7
0.5-12
Pressure indication  Via pressure gauge
Max. condensate volume(cm3)   22
Condensate drain  turned manually  1-16
semi-automatic 1.5-16
fully-automatic 2-12


  FLXY-2 Materials/Sectional view

FLXY-2 Materials/Sectional view

FLXY-2 Materials/Sectional view

FLXY-2 Materials/Sectional view

FLXY-2 Materials/Sectional view
