PRODUCT DETAIL

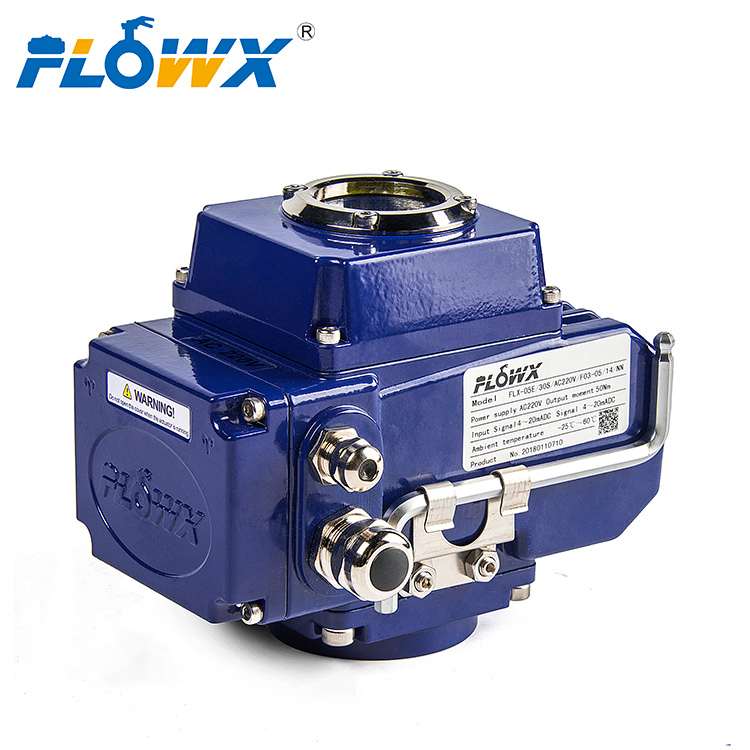

Electric Actuators for Ball Valves

1.The Series is a low profile,compact, powerful actuator with customer-friendly features.

2.Manual declutchable handle lever.
3.Local high visibility dome postion indicator.

4.Digital interface available.

5.Optional microprocessor based moudulating control.
Availability:
  • FLOWX-FSEA
  • Flowx

Electric “FLX” and “FLX-E” Series


Power Requirements 110 VAC, 220 VAC, 24 VAC or 24 VDC (MD models not available in 24 VDC)
Power Consumption See instruction manual
Cycle Time (per 90°) FLX-01: 4 s; 01: 10 s; FLX-02 and FLX-E 02: 20 s; FLX-03 and FLX-E03: 30 s
Duty Rating 85%
Enclosure Rating NEMA 4X (IP67)
Housing Material Powder coated aluminum
Temperature Limits -22 to 140°F (-30 to 60°C)
Electrical Connection 1/2" female NPT
Modulating Input 4 to 20 mA
Standard Features Manual override, position indicator, and TD models come with two limit switches
Related Product


                    Photo       Model Code                               Description

 Pneumatic-Actuator4







       FLXDA52-DA63

Quarter Turn Double Acting Pneumatic Actuator have this feature.
1.Rack and pinion actuator available in doubule acting spring returnicals.
2.Standard units have anodized aluminum bodies with polyster coated end caps.
3.Internal bidirectional travel stops.
4.Seacorr coating for harsh enviroments.
5.SIL3 capable.
6.Inregral porting.
7.NAMUR accessory compatible.

   2-5 Way,2-3 Way Solenoid Valves




       FLX-TMSV


1.Weatherproof NEMA4,4X and explosion proof housings available

2.Flying leads to DIN Connectors

3.Single or dual Coil

4.2/5 or 2/3 Operation

5.NAMUR mounted

6.High flow up to 1.4Cv

7.Intrinsically safe versions available

Limit Swtich





        FLX-2N


1.Discrete staus monitor for quarter turn rotary actuators

2.NEMA4.4X and IP66,IP67 ingress protection

3.High visibility done position indicator

4.Up to 6SPDT switches or non-contacting proximity switches

5.Switch pre-wired to internal teminal block
