Double Flange Type Butterfly Valve

The Flowx Flanged butterfly valve is suitable for temperature ≤120℃ or ≤150℃, nominal pressure ≤1.6MPa watersupply and drainage, sewage, food, heating, gas, shipbuilding, hydropower, metallurgy, energy systerms and texile and other industries, especially for two-way sealing and Easy to corrode valve body, adjust flow and shutoff medium.
  • FP100
  • Flowx
  • 8481202000

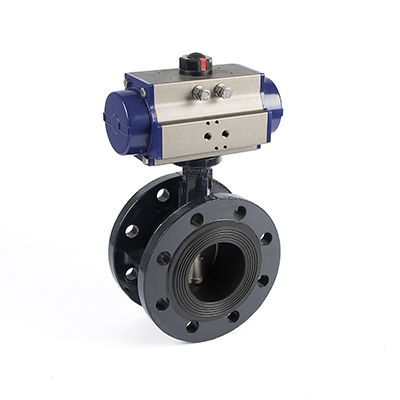

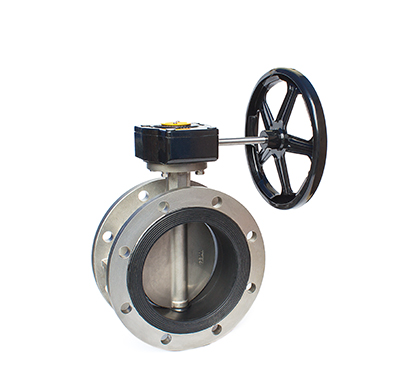

Double Flange Type Butterfly Valve


Feature

Size Range 2" - 10" (50mm - 250mm)
Body Style Double Flanged
Temperature Range ≤120℃ or ≤150℃
Pressure Ratings PN6, PN10, PN16
Body Materials Ductile Iron, SS304/SS316, WCB, Aluminium Alloy 2205, 2507, 1.4529
Disc Materials SS304/SS316, Aluminum Bronze, Nylon, Ductile Iron, 2205, 2507,1.4529
Stem Materials SS410
Seat Materials EPDM, PTFE, NBR, VITON
Applications Water Treatment, Munciliple Engineer, Pharmacy, Auto Industry
Actuator Feature


Pneumatic “DA” and “SR” Series

Type DA series is double acting and SR series is spring return (rack and pinion)
Normal Supply Pressure DA: 40 to 115 psi (2.7 to 7.9 bar); SR: 80 psi (5.5 bar)
Maximum Supply Pressure 120 psi (8.6 bar)
Air Connections:DA01 DA01: 1/8" female NPT; DA02 to DA05: 1/4" female NPT; SR02 to SR07: 1/4" female NPT
Housing Material Anodized aluminum body and epoxy coated aluminum end caps
Temperature Limits -40 to 176°F (-40 to 80°C)
Accessory Mounting NAMUR standard

Electric “FLX” and “FLX-E” Series


Power Requirements 110 VAC, 220 VAC, 24 VAC or 24 VDC (MD models not available in 24 VDC)
Power Consumption See instruction manual
Cycle Time (per 90°) FLX-01: 4 s; 01: 10 s; FLX-02 and FLX-E 02: 20 s; FLX-03 and FLX-E03: 30 s
Duty Rating 85%
Enclosure Rating NEMA 4X (IP67)
Housing Material Powder coated aluminum
Temperature Limits -22 to 140°F (-30 to 60°C)
Electrical Connection 1/2" female NPT
Modulating Input 4 to 20 mA
Standard Features Manual override, position indicator, and TD models come with two limit switches



Detail

details

Accessories


                    Photo       Model Code                               Description
General-Electric-Actuator-400-400





     FLOWX-FSEA


1.The Series is a low profile,compact, powerful actuator with customer-friendly features.

2.Manual declutchable handle lever.

3.Local high visibility dome postion indicator.

4.Digital interface available.

5.Optional microprocessor based moudulating control.

 Pneumatic-Actuator4







       FLXDA52-DA63

Quarter Turn Double Acting Pneumatic Actuator have this feature.
1.Rack and pinion actuator available in doubule acting spring returnicals.
2.Standard units have anodized aluminum bodies with polyster coated end caps.
3.Internal bidirectional travel stops.
4.Seacorr coating for harsh enviroments.
5.SIL3 capable.
6.Inregral porting.
7.NAMUR accessory compatible.

   2-5 Way,2-3 Way Solenoid Valves




       FLX-TMSV


1.Weatherproof NEMA4,4X and explosion proof housings available

2.Flying leads to DIN Connectors

3.Single or dual Coil

4.2/5 or 2/3 Operation

5.NAMUR mounted

6.High flow up to 1.4Cv

7.Intrinsically safe versions available

Limit Swtich





        FLX-2N


1.Discrete staus monitor for quarter turn rotary actuators

2.NEMA4.4X and IP66,IP67 ingress protection

3.High visibility done position indicator

4.Up to 6SPDT switches or non-contacting proximity switches

5.Switch pre-wired to internal teminal block

Application
