Manual U Type Butterfly Valves

loading

- Founded in 2006, FLOWX has become China's largest valve and actuator manufacturer.
- The products have passed ISO9001 and CE certification.
- The valve life is guaranteed for 5 years.
- We provide one-stop sourcing service for you.
- The dozens of series of ball valves, butterfly valves, electric actuators, pneumatic actuators, and accessories.
Availability:
  • FLOWX

  • FLOWX-MUBV

FLOWX company main produce: Manual U Type Butterfly Valves

(Please contact us Get Free Quote Now. )

Features & Benefits


  • Simple structure, good interchangeability, and low price.

  • The stem seal is not easily deformed to avoid the normal stem leakage, and the overall support is good, stable and firm.

  • With less seat rubber, there is less potential for expansion and it is easier to control the torque within the proper range.

  • The use of two-piece valve stems with no pin connection, the structure is simple and compact, and mainte­nance and disassembly are very convenient.

  • The butterfly board has the function of automatic centering, and the butterfly board and valve seat are closely matched.a

  • The phenolic back valve seat has the characteristics of not falling o仔 tensile resistance, leakage prevention

    and easy replacement.

  • Surface: Polyester, RAL9006, 100μ

  • Face-to-face: EN558-1

  • Counter flange: DN40-DN300, PN10/16/ANS1150

  • BS10 TABLE D/E JIS 10K 16K

  • DN350 -DN600 PN10 or ANS1150 BS10 TABLE D/E


Main Specification


Nominal

Size

Operated

Type

Work

Pressure

Work

Temperature

Seal

 Material

Disc

Material

Body

Material

Medim

Connection

 Standard

DN25

350

Pneumatic Actuato

Electric Actuator

Manual Hand Lever

Worm Gear

 PN2

PN1.0

PN1.6

-15-85°C

-25-150°C

-15-85°C

-25-200°C

EPDM

PTFE


WCB

SS304

SS316

Polishing Plate

Ductile Iron


Strong Acid

Strong Alkali

Fodder


PN10/PN16

ANSI150

D1N16

JIS10K/16K

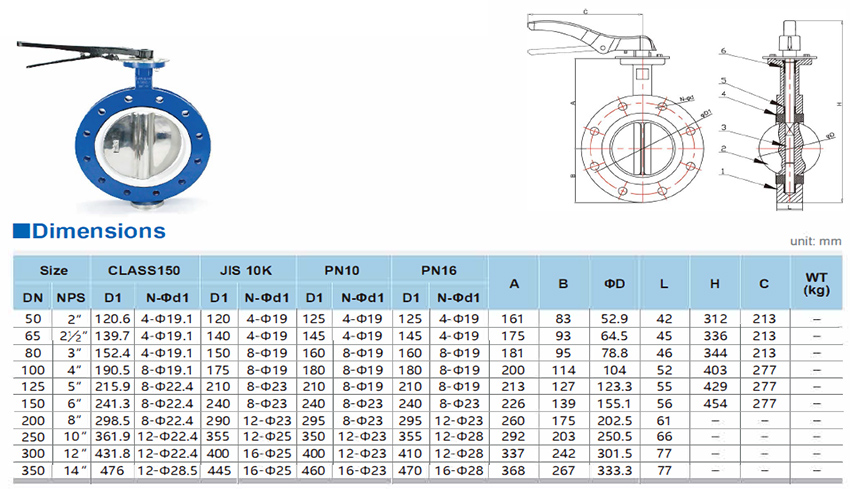

Dimensions

Manual-U-Type-Butterfly-Valves
