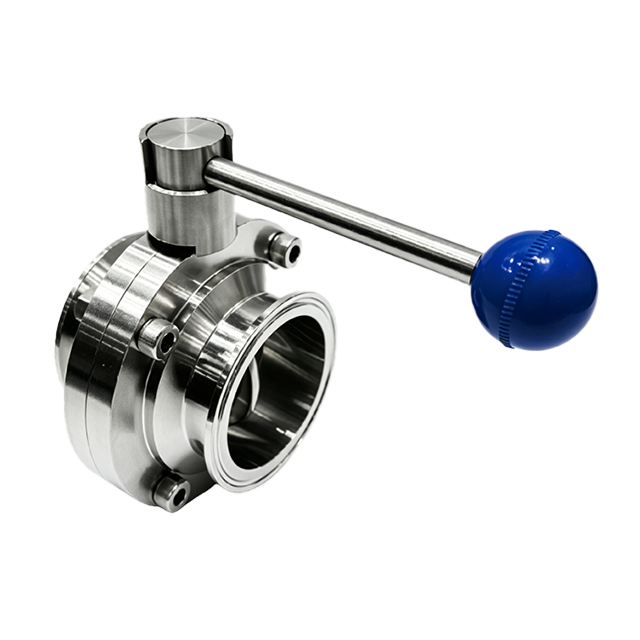

Two-Piece Sanitary Butterfly Valve

Butterfly valves can be remotely controlled via actuators or manually operated by handles.

The actuator converts the axial movement of a piston into 90° rotation of the valve shaft to control pipeline fluid and perform opening/closing functions. There are three types of pneumatic actuator units.

Standard types: Normally Open (NO), Normally Closed (NC), Air/Air (A/A). The duckbill-style multi-position handle for manual operation can mechanically lock the valve at 12 opening or closing positions via 15-point adjustment to regulate media flow. The pull-rod handle features 3 multi-position settings to mechanically lock the valve at 3 opening or closing positions for media flow regulation.
