PRODUCT DETAIL

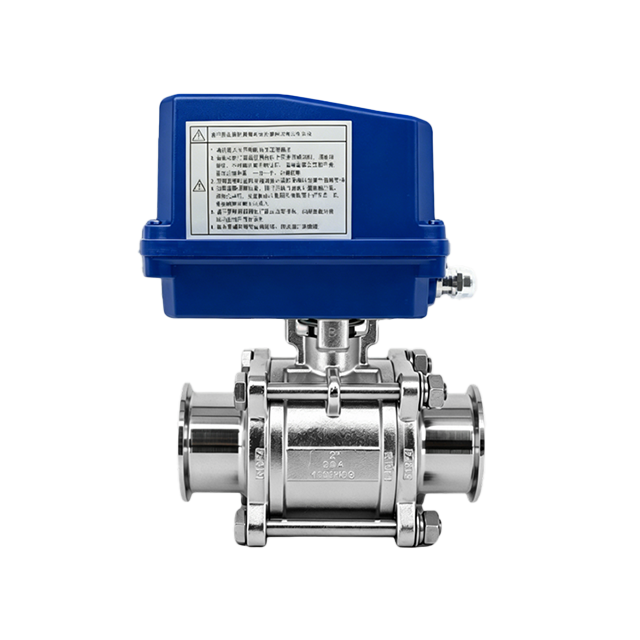

Three-Piece Electric Ball Valve

loading

- Founded in 2006, FLOWX has become China's largest valve and actuator manufacturer.
- The products have passed ISO9001 and CE certification.
- The valve life is guaranteed for 5 years.
- We provide one-stop sourcing service for you.
- The dozens of series of ball valves, butterfly valves, electric actuators, pneumatic actuators, and accessories.

Nominal Pressure: 0–1.6 MPa
Temperature Range: -40°C to 100°C
Design Standard: GB/T 12224-2015
Connection Standard: ASME BPE / DIN 11850
Testing Standard: GB/T 13927-2022
Applicable Media: Water, ≤50% ethylene glycol/propylene glycol solutions
Actuator Model: CTF-002
Operating Voltage: AC 220V
Motor Power: 14W
Rated Current: 150mA
Output Torque: 20 N·m
Switching Time: 16s
Availability:
Inquire Add to Basket

  • FLOWX

FLOWX company main produce: Three-Piece Electric Ball Valve

(Please contact us Get Free Quote Now. )

Features & Benefits

  • Designed for intelligence and ease of maintenance, modern liquid-cooling valves are typically equipped with electric actuators and sensors. They support communication protocols such as Modbus and can integrate with BMS/EMS systems to enable remote monitoring, automatic adjustment, and predictive maintenance. Available with either welded or sanitary quick-clamp connections, these valves are suitable for applications in liquid cooling, water supply, and drainage systems.

  • Low fluid resistance

  • Easy to maintain

  • Excellent sealing performance

  • Simple to operate

  • Long service life

  • Space-saving design


Basic Parameters


Parameter Specification
Nominal Pressure 0–1.6 MPa
Temperature Range -40°C ~ 100°C
Design Standard GB/T12224-2015
Connection Standard ASME BPE / DIN 11850
Test Standard GB/T13927-2022
Working Media Water; liquids with ethylene glycol or propylene glycol concentration ≤50%
Actuator Model CTF-002
Operating Voltage AC220V
Motor Power 14W
Rated Current 150mA
Output Torque 20 N·m
Switching Time 16s
Optional Valve Sizes UPVC (DN15–40); Stainless Steel (DN15–40); Butterfly Valve (DN40–50)
Optional Valve Materials UPVC, CPVC, Cast Steel, Cast Iron, Stainless Steel

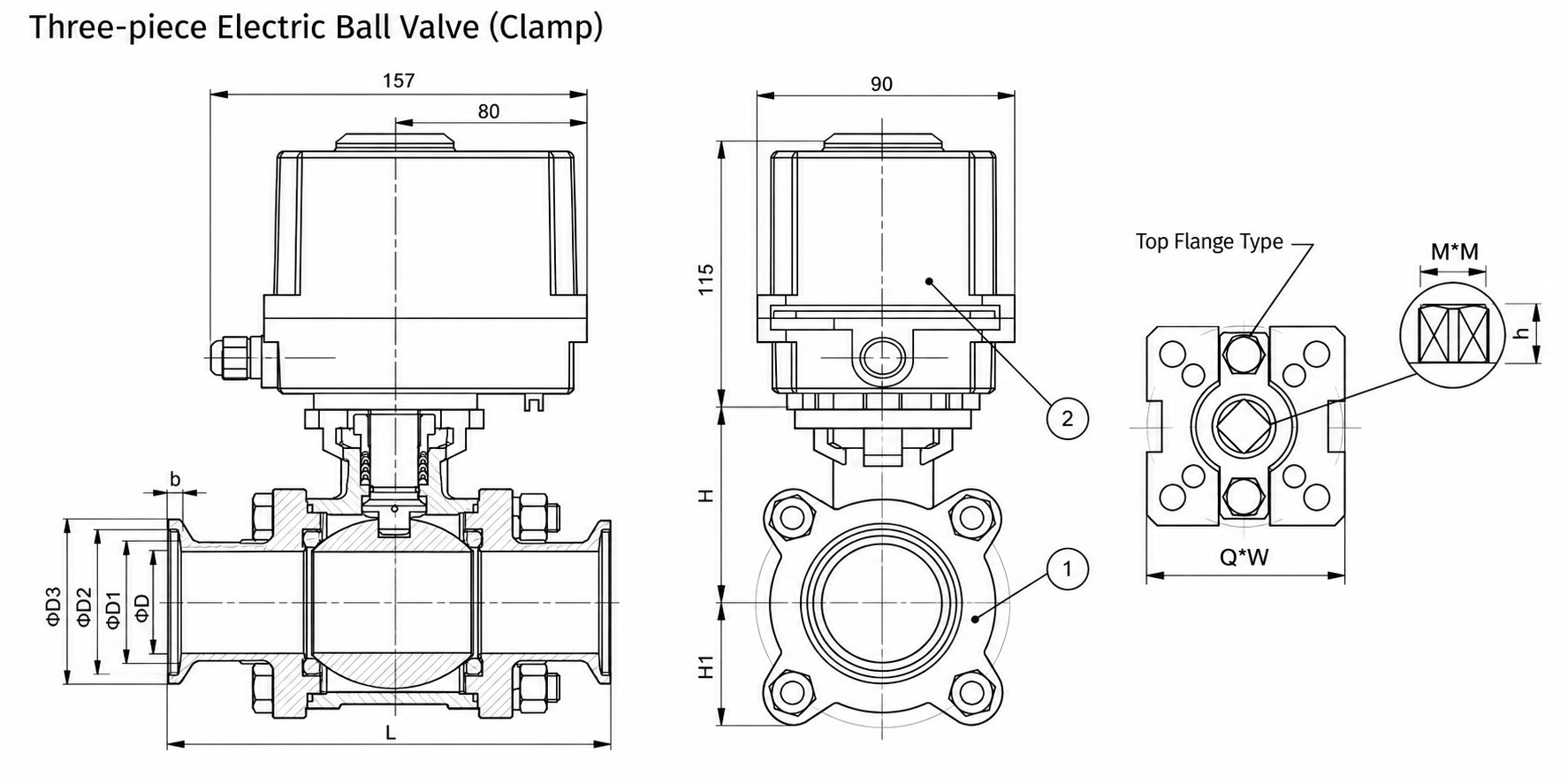

Three-piece Electric Ball Valve (Clamp)

Three-piece Electric Ball Valve (Clamp)


NPS ΦD ISO ΦD DIN ΦD 3A L b ISO/DIN b 3A ΦD1 ISO ΦD1 DIN ΦD1 3A ΦD2 ISO/DIN ΦD2 3A ΦD3 ISO/DIN ΦD3 3A H1 H M×M×h Q×W Top Flange Type Torque / N·m
0.5 9.7 16 9.4 90 2.85 3.63 12.7 20 12.7 27.5 20.32 34 25 32 46 9×9×9 50×50 F03/F05 11
0.75 22.4 20 15.75 100 2.85 3.63 25.4 24 19.05 27.5 20.32 34 25 33 47.5 9×9×9 50×50 F03/F05 13
1 22.6 26 22.1 115 2.85 2.85 25.6 30 25.4 43.5 43.5 50.5 50.5 41.25 60 11×11×11 51×55 F04/F05 17
1.25 31.3 32 28.5 125 2.85 2.85 34.3 36 31.8 43.5 43.5 50.5 50.5 49.5 64 11×11×11 51×55 F04/F05 23
1.5 35.6 38 34.8 140 2.85 2.85 38.6 42 38.1 43.5 43.5 50.5 50.5 59.03 80 14×14×15 66.5×72 F05/F07 26

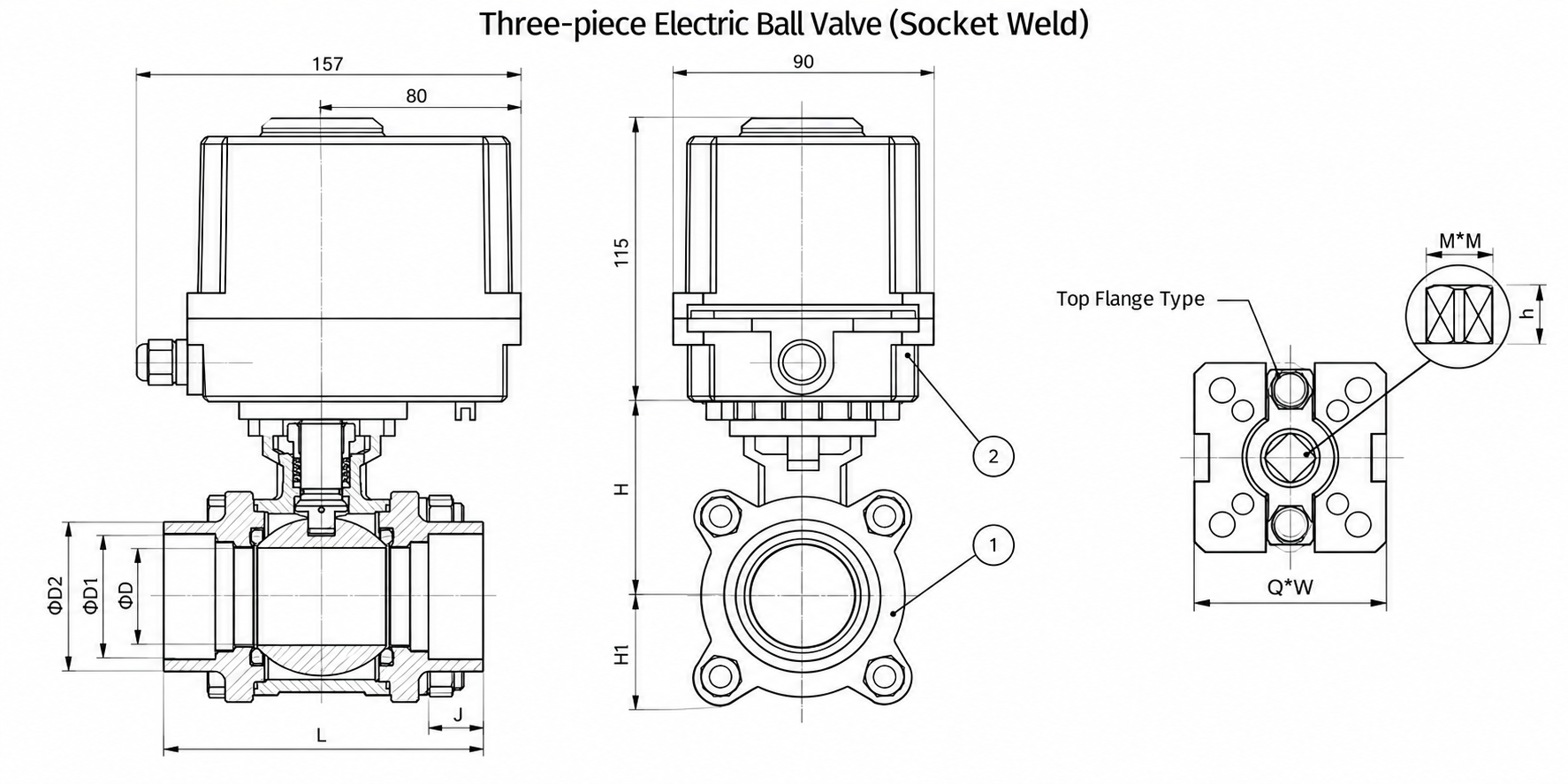

Three-piece Electric Ball Valve (Socket Weld)

Three-piece Electric Ball Valve (Socket Weld)

NPS ΦD L J ΦD1 (Series A) ΦD1 (Series B) ΦD2 H1 H M×M×h Q×W Top Flange Type Torque / N·m
0.5 15 75 10 22.5 19 28 32 46 9×9×9 50×50 F03/F05 11
0.75 20 90 11 27.5 26 34 33 47.5 9×9×9 50×50 F03/F05 13
1 25 100 13 34.5 33 41 41.25 60 11×11×11 51×55 F04/F05 17
1.25 32 110 14 43.5 39 52 49.5 64 11×11×11 51×55 F04/F05 23
1.5 38 125 16 49.5 46 58.5 59.03 80 14×14×15 66.5×72 F05/F07 26
