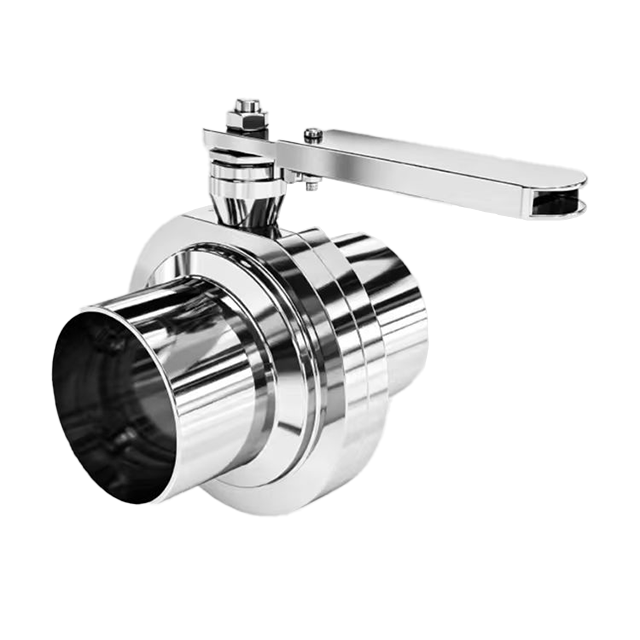

One-Piece Sanitary Butterfly Valve

Name: One-Piece Sanitary Butterfly Valve
Brand: FLOWX
Rating: 5.0 (1 reviews)

- Founded in 2006, FLOWX has become China's largest valve and actuator manufacturer.
- The products have passed ISO9001 and CE certification.
- The valve life is guaranteed for 5 years.
- We provide one-stop sourcing service for you.
- The dozens of series of ball valves, butterfly valves, electric actuators, pneumatic actuators, and accessories.

- Nominal Pressure: PN10/PN16
- Temperature Range: -40°C to 100°C
- Connection Standards: Clamp (ASME BPE), Weld (DIN11850/ASME)
- Testing Standards: ASME BPE, GB/T 13927, API 598
- Applicable Media: Water, liquids containing ≤50% ethylene glycol/propylene glycol

Availability:



Inquire Add to Basket

Brand:
FLOWX

PRODUCT DESCRIPTION

FLOWX company main produce: One-Piece Sanitary Butterfly Valve

(Please contact us Get Free Quote Now. )

Features & Benefits

Features an integrated welded design, eliminating the risk of external leakage often associated with conventional bolted connections.
Triple-seal design.
Reliable and durable.
Easy to maintain; low operating torque.
Oil-free and degreased.

Technical Specifications

Nominal Pressure	PN10 / PN16
Temperature Range	−40°C to +100°C
Connection Standa	Clamp:ASME BPE Welded:DIN 11850/ASME
Test Standard	BPEGB/T 13927/API598
Media	Water; ethylene glycol or propylene glycol solutions at concentrations ≤50%

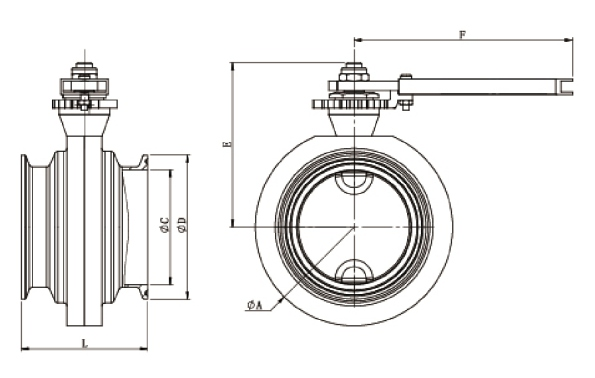

Clamp Quick-install Monobloc Butterfly Valve

SIZE	L	ΦD	ΦC	E	F	ΦA
2"	76	64	47	88	95	93
2.5"	84	77.5	70	95	97	110
3"	84	91	83	104	138	125
4"	82	119	100	126	138	155

Welded Monobloc Butterfly Valve

	SIZE	L	ΦD	ΦC	E	F	ΦA
Handle	1″	120	50.8	47.5	88	95	93
	2.5″	120	63.5	60.2	95	97	110
	3″	140	76.2	72.2	104	138	125
	4″	140	104	100	126	138	155
	5″	200	129	125	156	186	190
Gear Operator	6″	240	152.4	146.8	275	138	208
Gear Operator	8″	320	203.2	197.6	296	140	295
