PRODUCT DETAIL

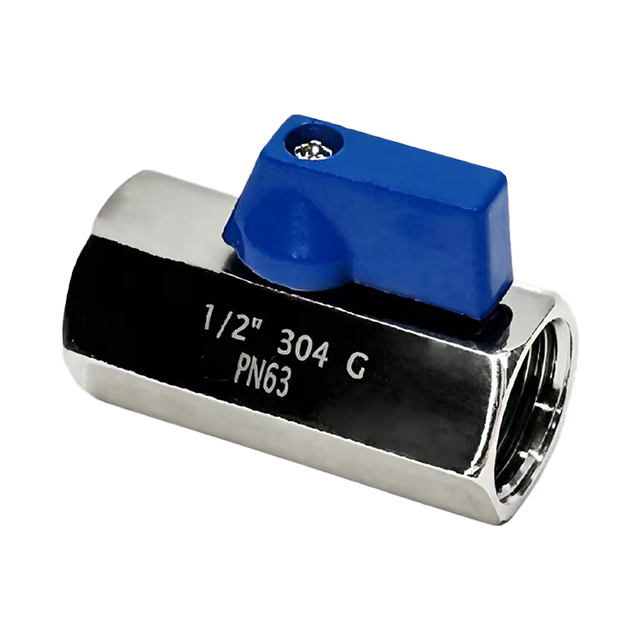

Double Female Mini Ball Valve

loading

- Founded in 2006, FLOWX has become China's largest valve and actuator manufacturer.
- The products have passed ISO9001 and CE certification.
- The valve life is guaranteed for 5 years.
- We provide one-stop sourcing service for you.
- The dozens of series of ball valves, butterfly valves, electric actuators, pneumatic actuators, and accessories.

- Nominal Pressure: PN10
- Temperature Range: -40°C to 120°C
- Connection Standard: GB/T 12237-2021
- Testing Standard: JB/T 9092-1999
- Compatible Media: Water, ethylene glycol/propylene glycol solutions (up to 50%)
Availability:
Inquire Add to Basket

  • FLOWX

FLOWX company main produce: Double Female Mini Ball Valve

(Please contact us Get Free Quote Now. )

Features & Benefits


  • Function: Stainless steel ball valves are used to shut off or allow the flow of media within a pipeline. They feature a threaded connection, ensuring quick and convenient installation.

  • Applications: Suitable for use in liquid cooling systems, water supply and drainage, and similar fields.

  • Low flow resistance

  • Simple structure, compact size, and lightweight

  • Easy to maintain

  • Low operating torque

  • Oil-free and degreased


Basic Parameters


Parameter Specification
Nominal Pressure PN10
Temperature Range -40°C ~ 120°C
Connection Standard GB/T12237-2021
Test Standard JB/T9092-1999
Media Water,liquids with ethylene glycol or propylene glycol concentration ≤50%


Main Component Materials
Part Name Material
Valve Body Stainless Steel
Body Seat PTFE
Ball Stainless Steel
Bonnet Seat PTFE
Flat Gasket Stainless Steel
Male Thread Bonnet Stainless Steel
Stem Washer PTFE
Valve Stem Stainless Steel
O-ring EPDM
Handle Plastic
Screw Stainless Steel

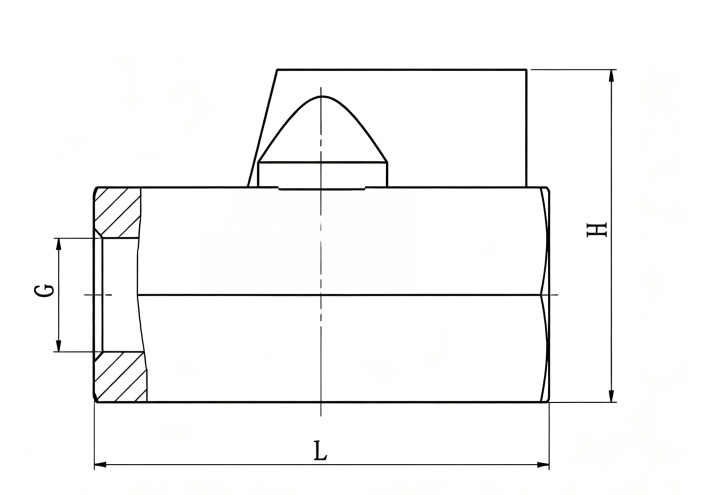

Dimen sions

Double Female Mini Ball Valve

SIZE DN L G1 H
1/8″ DN6 42 1/8 39
1/4″ DN8 42.5 3/8 39
3/8″ DN10 47 3/8 39
1/2″ DN15 48 1/2 43
3/4″ DN20 55.5 3/4 50.5
1″ DN25 67 1 57
