Seawater desalination has become a critical solution for addressing global water shortages, especially in coastal industrial regions. From municipal infrastructure to petrochemical and power industries, modern desalination systems rely heavily on precise flow control and reliable valve performance.

However, selecting the right valves for seawater desalination is far from simple. Harsh conditions such as high salinity, strong corrosion, and scaling risks demand carefully engineered solutions. In addition, each stage of the desalination process—from pretreatment to reverse osmosis and final polishing—requires different valve types and materials.

This guide provides a practical, stage-by-stage valve selection strategy for industrial seawater desalination systems.

---

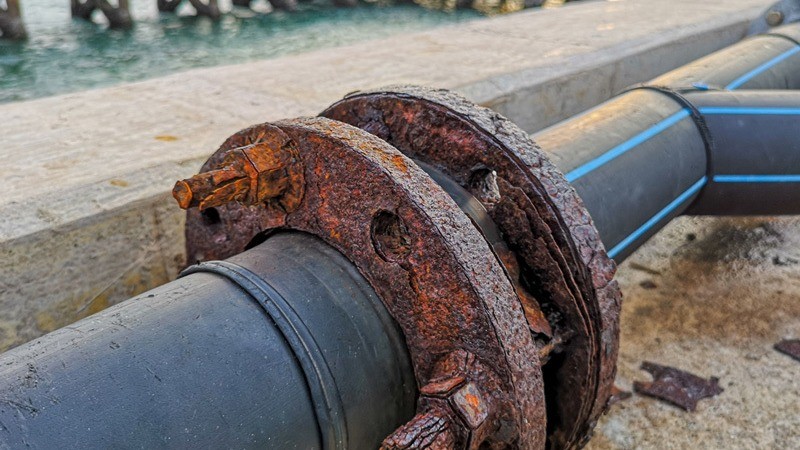

Key Challenges in Seawater Desalination Valve Selection

Selecting valves for seawater desalination systems requires addressing several critical challenges:

• High salinity and chloride content
  Seawater contains high levels of chloride ions, which can cause severe corrosion to standard materials.

• Strong corrosion environment
  Materials must be resistant to long-term exposure, especially in high-pressure sections.

• Scaling and fouling risks
  Suspended solids and biological matter in early stages increase wear and sealing challenges.

• Wide pressure variations
  Pressure ranges can vary significantly, especially in SWRO systems (up to 10 MPa).

To ensure long-term reliability, corrosion-resistant materials, proper sealing design, and pressure-rated valve structures are essential.

---

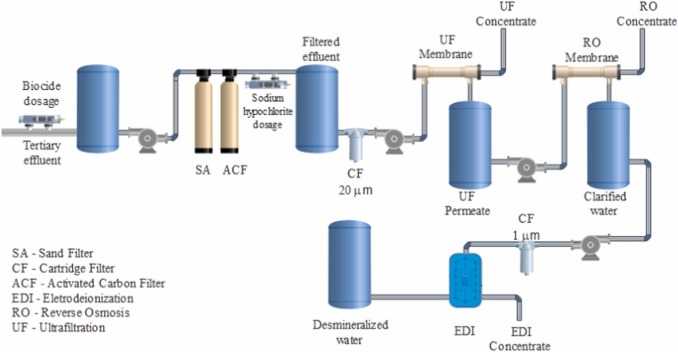

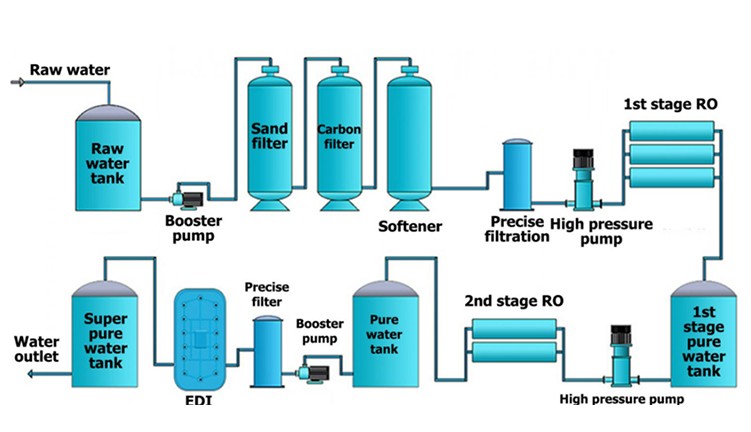

Overview of Seawater Desalination Process

A typical seawater desalination system includes the following stages:

1. Pretreatment (sedimentation, filtration)

2. Ultrafiltration (UF)

3. Seawater Reverse Osmosis (SWRO)

4. Brackish Water Reverse Osmosis (BWRO)

5. Electrodeionization (EDI)

Each stage operates under different pressure, water quality, and flow conditions, requiring specific valve configurations.

---

Valve Selection by Process Stage

---

Pretreatment Systems (V-Type Filter & Sedimentation)

Application Conditions

• Low pressure (≤1.0 MPa)

• Presence of suspended solids

• Large valve diameters

• High TDS and chloride levels

Recommended Valve Types

• Concentric butterfly valves

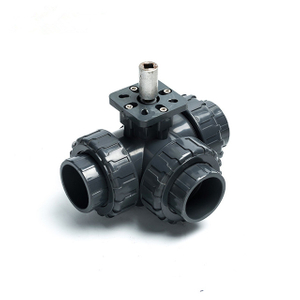

• Plastic ball valves (UPVC / CPVC)

• Gate valves

• Double eccentric butterfly valves

Material Recommendations

• Valve body: WCB / DI / SS2205

• Disc: SS2205

• Seat: EPDM / PTFE

Key Focus: Corrosion resistance and abrasion tolerance.

---

Ultrafiltration (UF) Systems

Ultrafiltration shares similar operating conditions with pretreatment but introduces flow regulation requirements

Application Conditions

• Low pressure (≤1.0 MPa)

• Moderate solids content

• Corrosive environment

Recommended Valve Types

• Concentric butterfly valves

• Gate valves

• Double eccentric butterfly valves

Some valves must support flow control, not just on/off operation.

---

SWRO (Seawater Reverse Osmosis) Systems

This is the most critical stage in seawater desalination and involves both low-pressure and high-pressure zones.


Application Conditions

• Low-pressure sections (≤1.0 MPa)

• High-pressure sections (≤10.0 MPa)

• Significant variation in water quality

Recommended Valve Types

• Triple eccentric metal seated butterfly valves (key solution)

• Double eccentric butterfly valves

• Concentric butterfly valves

Material Recommendations

• SS2205 (duplex stainless steel)

• Metal sealing structures (e.g., STL hard sealing)

Key Focus:

• High-pressure resistance

• Zero/low leakage performance

• Long-term corrosion resistance

---

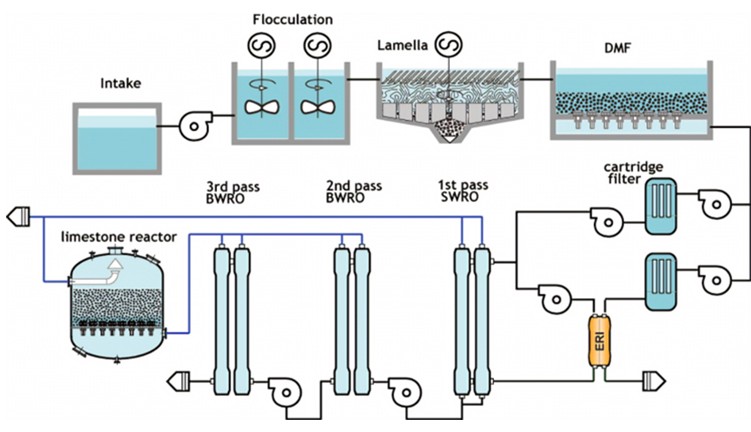

BWRO (Brackish Water Reverse Osmosis) Systems

After SWRO, water quality improves, reducing corrosion risks.

Application Conditions

• Lower pressure (≤1.0 MPa)

• Reduced chloride content

• Large pipeline diameters

Recommended Valve Types

• Double eccentric butterfly valves

• Concentric butterfly valves

Material Options

• SS316 (better corrosion resistance)

• SS304 (cost-effective option)

Key Focus: Cost-performance balance with adequate durability.

---

EDI (Electrodeionization) Systems

EDI is the final polishing stage, where water approaches high purity levels.

Application Conditions

• Low pressure (≤1.0 MPa)

• Very low TDS

• Smaller valve sizes

Recommended Valve Types

• Concentric butterfly valves

Material Recommendations

• Valve body: DI

• Disc: SS304

• Seat: EPDM

Key Focus: Clean service compatibility and stable operation.

---

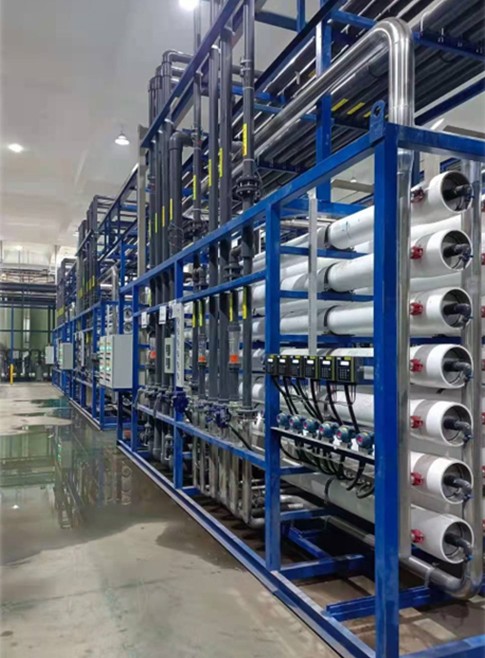

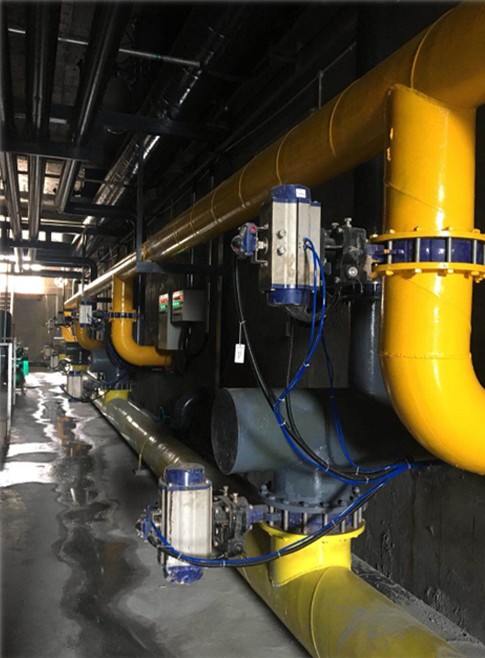

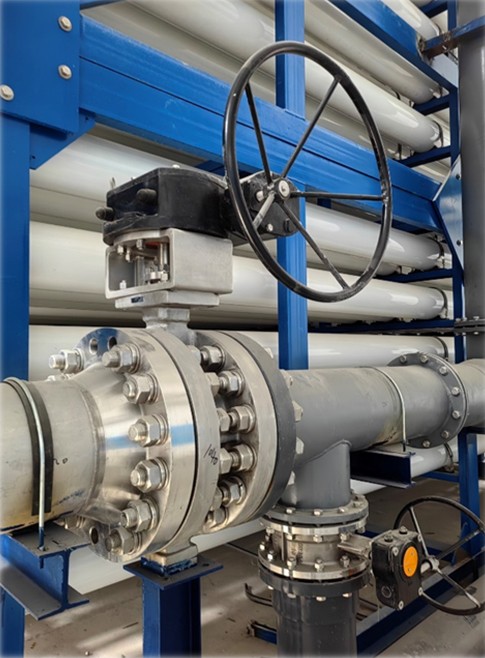

Project Case: Large-Scale Seawater Desalination Plant

A real-world project demonstrates the effectiveness of optimized valve selection:

Project Overview

• Location: Tianjin Nangang Industrial Zone

• Process: Pretreatment + RO + EDI

• Capacity: 50,000 tons/day



System Configuration

• SWRO units: 6 sets (total 63,000 tons/day)

• BWRO units: multiple stages

• EDI units: 6 sets (60,000 tons/day total capacity)

Key Data

• Total valves used: 1,098 units

• Automated valves: 288 units

This project highlights how proper valve selection ensures system stability, efficiency, and long-term reliability.

---

How to Choose the Right Valves for Seawater Desalination

When selecting valves for desalination projects, consider:

• Material suitability (SS2205, duplex, PTFE, etc.)

• Pressure rating and sealing performance

• Automation compatibility (pneumatic or electric actuators)

• Experience in desalination applications

• Compliance with international standards (ISO, CE, API)

A reliable supplier should provide customized solutions based on specific process conditions.

---

Conclusion

Seawater desalination systems require carefully engineered valve solutions tailored to each stage of the process. From low-pressure pretreatment to high-pressure SWRO and high-purity EDI systems, selecting the right valve type and material is essential for ensuring:

• Long-term durability

• Stable system operation

• Reduced maintenance costs

---

Get Your Customized Valve Solution

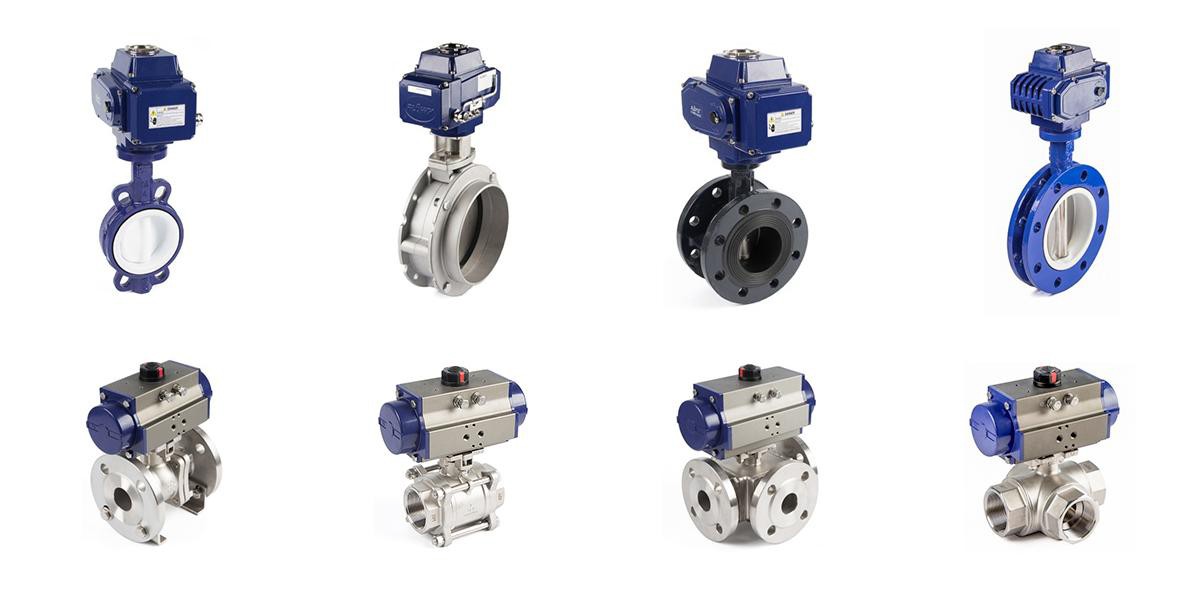

FLOWX provides complete industrial valve solutions for seawater desalination systems, including butterfly valves, ball valves, and automated control solutions.
