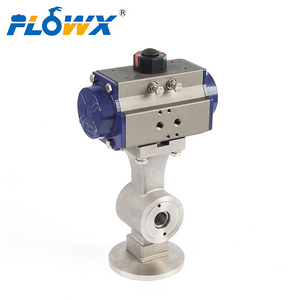

Pneumatic Double Acting Piston Ball Valve

Pneumatic ball valve adopts new AT or GT pneumatic actuators, with double and single action, rack and pinion transmission, safe and reliable, the valve body and ball core are stainless steel, adopt silicon sol technology, and can be designed for casting structure and forging structure according to user needs and actual working conditions

  • FP2000 series
  • Flowx
  • FLOWX-FSPA

Series WE04 2-Piece Flanged Stainless Steel Ball Valve

The Series WE04 incorporates a full port 2-piece flanged SS ball valve for great flow rates with minimal pressure drop. The valve features a blowout proof stem for added safety, reinforced PTFE seats and seals for longer life, and a 316 SS (ASTM CF8M) ball for better performance. Actuators are direct mounted creating a compact assembly for tight spaces. Limit switches are able to be mounted directly to the valves allowing for remote position indication.

The Series WE04 can be configured with either a pneumatic or electric actuator. Electric actuators are available in weatherproof or explosion-proof, a variety of supply voltages, and two-position or modulating control. Two-position actuators use the supply voltage to drive the valve open or closed, while the modulating actuator accepts a 4 to 20 mA input for valve positioning. Actuators feature thermal overload protection and permanently lubricated gear train.

The pneumatic double acting actuator uses an air supply to drive the valve open and closed. The actuator has two supply ports, with one driving the valve open, and the other driving the valve closed. Spring return pneumatic actuators use the air supply to open the valve, and internally loaded springs return the valve to the closed position. Also available is the SN solenoid valve to electrically switch the air supply pressure between the air supply ports for opening and closing the valve. Actuators are constructed of anodized and epoxy coated aluminum for years of corrosion free service.


Specifications


  • VALVE

  • Service:

  • Compatible liquids and gases.

  • Body:

  • 2-piece.

  • Line Sizes:

  • 1/2 to 3".

  • End Connections:

  • 150# ANSI flange.

  • Pressure Limits:

  • 28" Hg to 275 psi (-0.7 to 19 bar) up to 392°F.

  • Wetted Materials:

  • Body and ball: 316 SS (CF8M); Stem: 316 SS; Seat: RTFE/PTFE; Seal, Washer, and Packing: PTFE.

  • Temperature Limits:

  • -20 to 392°F (-29 to 200°C).

  • Other Materials:

  • O-ring: Fluoroelastomer; Handle: 304 SS; Washer: 301 SS; Stem Nut, Locking Device, Gland Ring: 304 SS; Handle Sleeve: PVC.

  • Agency Approvals:

  • Meets the technical requirements of EU Directive 2011/65/ EU (RoHS II).



  • ACTUATORS


  • Pneumatic “DA” and “SR” Series

  • Type:

  • DA series is double acting and SR series is spring return (rack and pinion).

  • Normal Supply Pressure:

  • DA: 40 to 115 psi (2.7 to 7.9 bar); SR: 80 psi (5.5 bar).

  • Maximum Supply Pressure:

  • 120 psi (8.6 bar).

  • Air Connections:

  • DA01: 1/8" female NPT; DA02 to DA04: 1/4" female NPT SR02 to SR06: 1/4" female NPT.

  • Housing Material:

  • Anodized aluminum body and epoxy coated aluminum end caps.

  • Temperature Limits:

-40 to 176°F (-40 to 80°C).

  • Accessory Mounting:

  • NAMUR standard. Electric “TD” and “MD” Series

  • Power Requirements:110 VAC, 220 VAC, 24 VAC OR 240 VDC (MD models not available in 24 VDC) .

  • Power Consumption:See instruction manual.

  • Cycle Time (per 90°):TD01: 4 s; MD01: 10 s; TD02 and MD02: 20 s; TD03 and MD03: 30 s.

  • Duty Rating:85%.

  • Enclosure Rating:NEMA 4X (IP67).

  • Housing Material:Powder coated aluminum.

  • Temperature Limits:-22 to 140°F (-30 to 60°C).

  • Electrical Connection:1/2" female NPT.

  • Modulating Input:4 to 20 mA.

  • Standard Features:Manual override, position indicator, and TD models come with two limit switches.


  • Electric “TI” and “MI” Series

  • Power Requirements:110 VAC, 220 VAC, 24 VAC or 24 VDC.

  • Power Consumption:See instruction manual.

  • Cycle Time (per 90°):TI01 and MI01: 2.5 s; TI02 and MI02: 5 s; TI03 and MI03: 5 s; TI04 and MI04: 10 s; TI05 and MI05: 15 s.

  • Duty Rating:Two-Position: TI01-TI05: 25%; Modulating: MI01-MI05: 75%.

  • Enclosure Rating:NEMA 7, designed to meet hazardous locations: Class I, Group C & D; Class II, Group E, F & G; Division I & II.

  • Housing Material:Powder coated aluminum.

  • Temperature Limits:-40 to 140°F (-40 to 60°C).

  • Electrical Connection:1/2" NPT female.

  • Modulating Input:4 to 20 mA.

  • Standard Features:Position indicator and two limit switches.

Floating Ball Valve.jpg



Floating Ball Valve.jpg



Floating Ball Valve.jpg



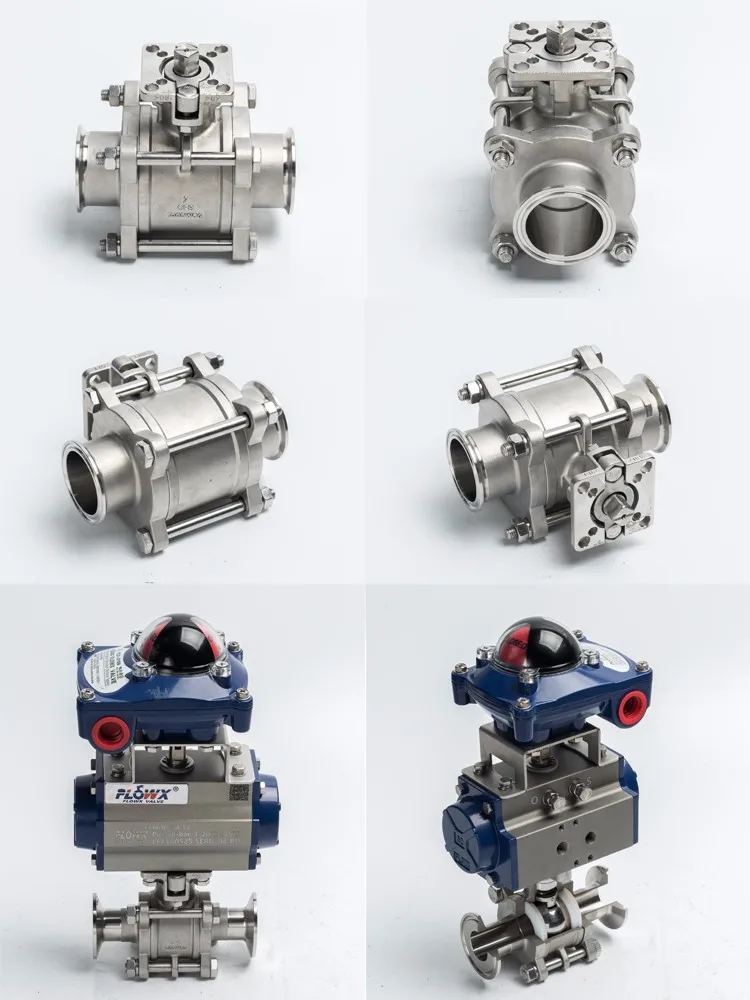

Product Features
  •  FLOWX 3-piece ball valve is designed for most of the industrial pipe line as full port product.

  • Size:1/4"~4"

  • Working pressure:1000PSI

  • Threaded End: Optional BSPT,NPT,DIN2999

  • Female Threaded End,Clamp End,Flange End,Butt Weld End and Socket Welded End.

  • (Optional) Locking device Handle

  • FLOWX VALVE Different material of soft kits will be applicable for different working circumstance

Material List

 Floating Ball Valve.jpg



Floating Ball Valve.jpg

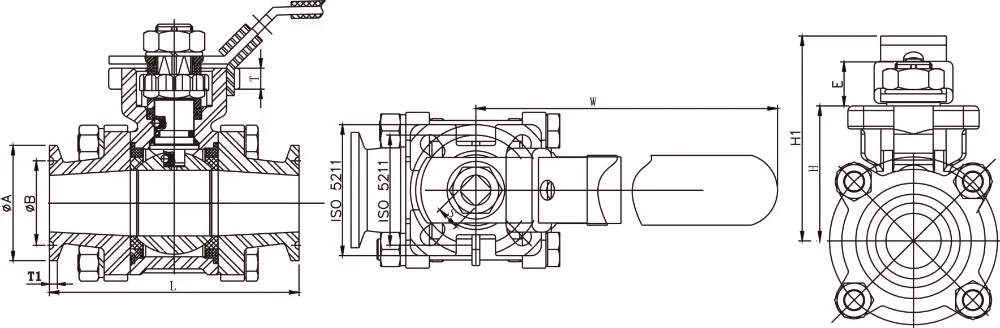

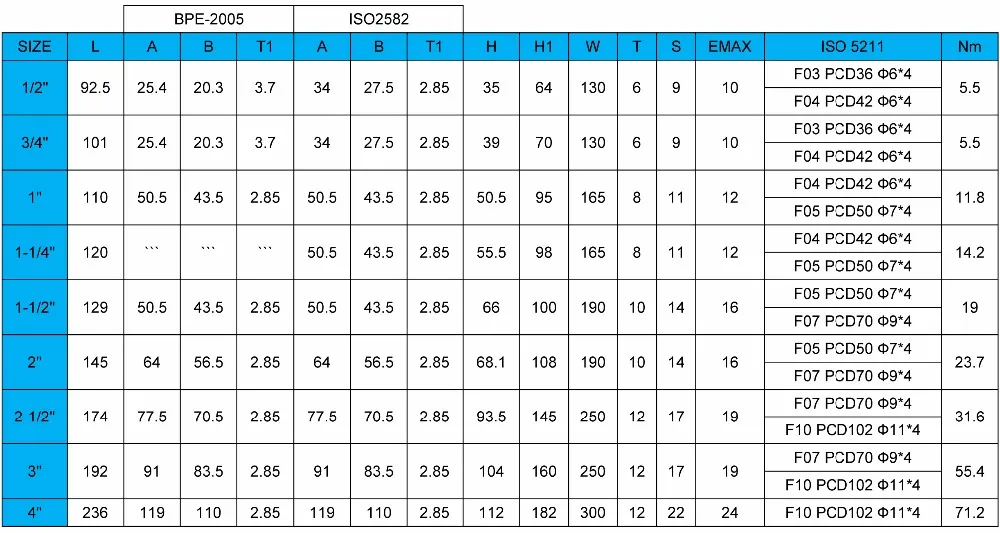

Dimension List

 Floating Ball Valve.jpg



 Floating Ball Valve.jpg
