PTFE Lined Valve Manufacturing: Compression Vs Injection Molding Explained

Introduction

In highly corrosive industrial environments, valve performance directly impacts system safety, uptime, and maintenance costs. From acids and alkalis to aggressive chemical media, selecting the right PTFE lined valve is critical for ensuring long-term reliability.

However, not all PTFE lined valves are manufactured the same way.

Two primary manufacturing processes dominate the market:

• Compression molding (thermoforming lining)

• Injection molding

Each method offers distinct advantages in terms of cost, precision, durability, and application suitability. Understanding these differences is essential for selecting the right solution for your operating conditions.

---

What Is a PTFE Lined Valve?

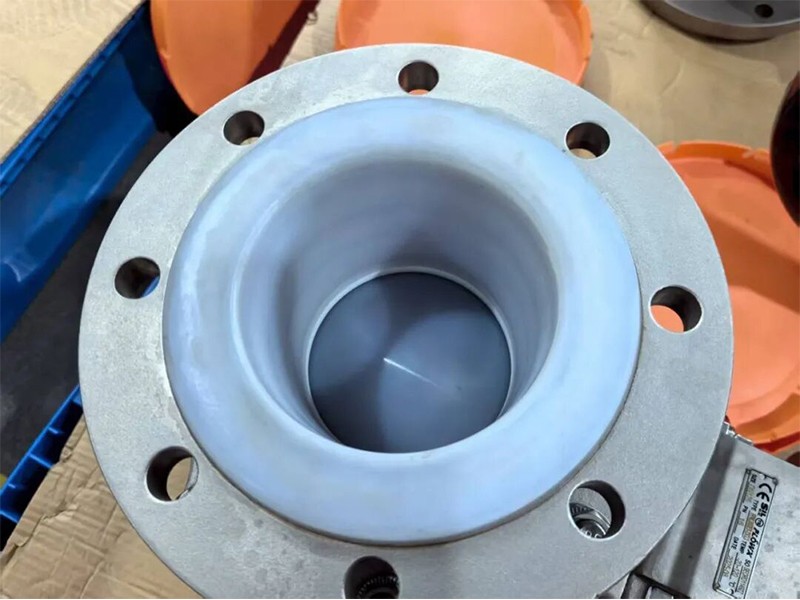

A PTFE lined valve is designed with a corrosion-resistant lining made of polytetrafluoroethylene (PTFE) applied to the internal wetted surfaces of the valve.

This lining provides:

• Excellent resistance to acids, alkalis, and solvents

• Low friction and non-stick properties

• Long-term protection against corrosion

Common types of PTFE lined valves include:

• PTFE lined butterfly valves

• PTFE lined ball valves

• PTFE lined check valves

• PTFE lined control valves

These valves are widely used in chemical processing, pharmaceuticals, water treatment, and other industries handling aggressive media.

---

Why Manufacturing Process Matters

The manufacturing process of a PTFE lined valve directly affects:

• Sealing performance

• Lining adhesion and integrity

• Resistance to pressure and temperature fluctuations

• Service life and maintenance frequency

Choosing the wrong manufacturing method can lead to premature failure, leakage, or increased downtime.

---

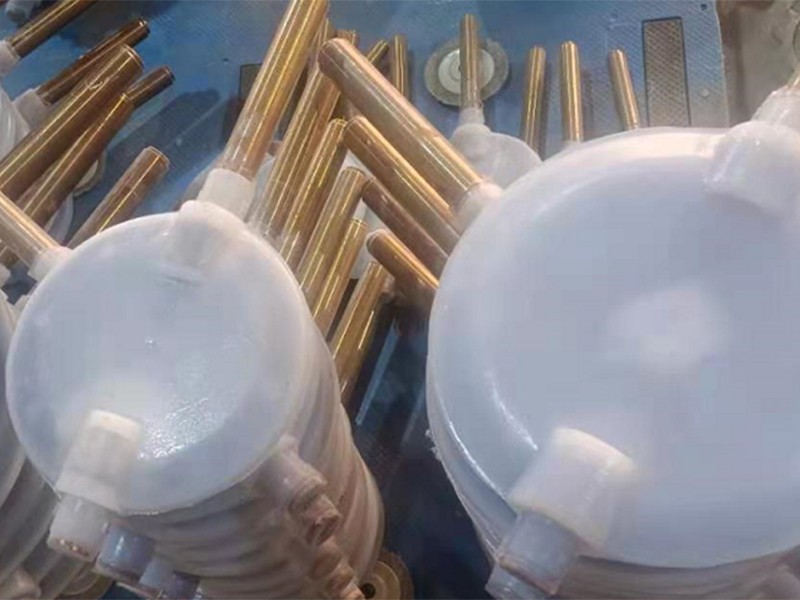

Compression Molded PTFE Lined Valves

Manufacturing Principle

Compression molding, also known as thermoforming lining, involves applying PTFE material onto the valve body under high temperature and pressure. The material is pressed and bonded to the inner surface, then cooled to form a dense lining layer.

---

Key Advantages

• Cost-effective production
  Ideal for large-scale manufacturing with competitive pricing

• Wide application range
  Suitable for acids, alkalis, salts, and general corrosive media

• Strong adhesion
  The lining bonds tightly to the valve body, reducing the risk of peeling

• Fast delivery
  Standard models can be produced and delivered quickly



---

Limitations

• Moderate dimensional precision

• Not ideal for highly complex internal structures

---

Typical Applications

• General chemical processing systems

• Medium to low pressure pipelines

• Standard industrial corrosion environments

---

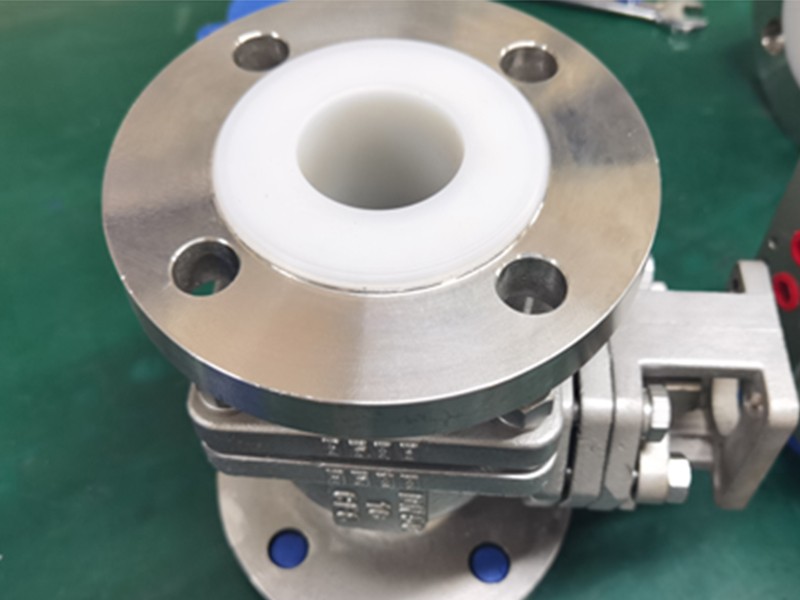

Injection Molded PTFE Lined Valves

Manufacturing Principle

Injection molding follows a “melt–inject–solidify” process:

1. PTFE material is heated into a molten state

2. The material is injected into a precision mold cavity

3. It cools and solidifies into a seamless lining

This creates a highly uniform and integrated internal structure.

---

Key Advantages

• High precision
  Tight dimensional tolerances ensure excellent sealing performance

• Seamless lining structure
  Eliminates weak points and improves corrosion resistance

• Superior durability
  Uniform thickness reduces wear and extends service life

• Suitable for complex designs
  Ideal for valves with intricate geometries



---

Limitations

• Higher production cost

• Longer manufacturing lead time

---

Typical Applications

• High-purity chemical systems

• Pharmaceutical and semiconductor industries

• Severe corrosion or high-reliability environments

---

Compression vs Injection Molded PTFE Lined Valves

Feature	Compression Molding	Injection Molding
Process	Heat + pressure bonding	Melt injection molding
Precision	Medium	High
Sealing Performance	Good	Excellent
Cost	Lower	Higher
Service Life	Standard	Extended
Application	General corrosion	High-demand environments

---

How to Choose the Right PTFE Lined Valve

Selecting the right PTFE lined valve depends on your specific operating conditions:

---

1. Based on Media Type

• Strong corrosive or high-purity media → Injection molded valves

• General acids and alkalis → Compression molded valves

---

2. Based on System Requirements

• Zero leakage / high sealing performance → Injection molding

• Cost-sensitive projects → Compression molding

---

3. Based on Operating Conditions

• High pressure / critical systems → Injection molding

• Standard industrial pipelines → Compression molding

---

4. Based on Lifecycle Cost

While injection molded valves have a higher upfront cost, they often provide:

• Longer service life

• Reduced maintenance

• Lower total cost of ownership

---

Available PTFE Lined Valve Types

Depending on your system design, PTFE lined valves are available in various configurations:

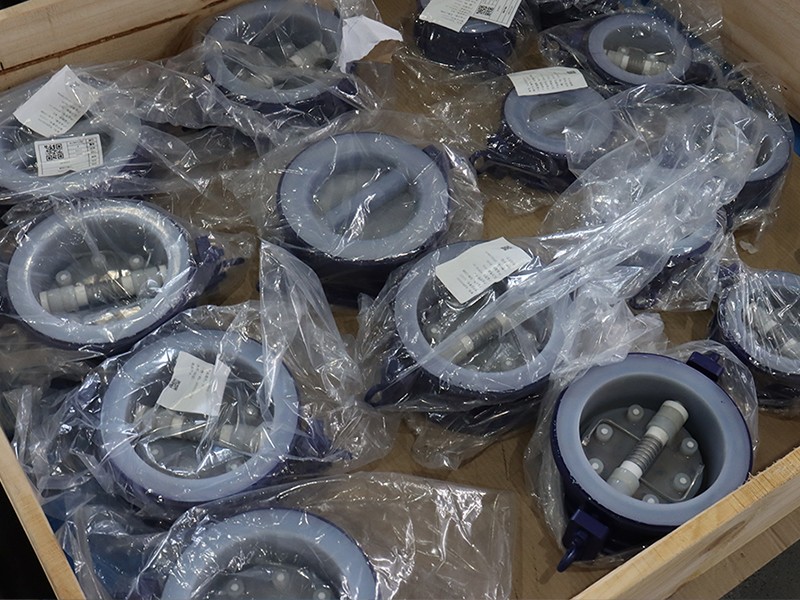

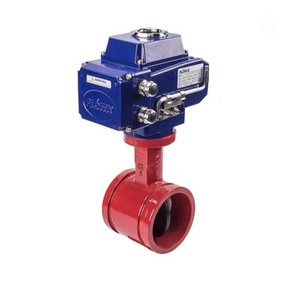

• Butterfly valves – compact, ideal for large-diameter pipelines

• Ball valves – excellent sealing and flow control

• Check valves – prevent backflow in corrosive systems

• Control valves – enable precise flow regulation

---

Quality Assurance and Testing

High-quality PTFE lined valves undergo strict testing procedures, including:

• Pressure testing

• Sealing performance verification

• Repeated cycle testing

• Dimensional inspection

Advanced manufacturers perform multiple sealing tests to ensure zero leakage and long-term reliability.

---

Conclusion

Both compression molding and injection molding offer unique advantages in PTFE lined valve manufacturing.

• Compression molded valves provide cost-effective and reliable solutions for general applications

• Injection molded valves deliver superior precision, durability, and performance for demanding environments

The right choice depends on your media, pressure, system complexity, and long-term operational goals.

---
