Machined Ball Valve Manufacturers

A ball valve is a shut-off valve that controls the flow of a liquid or gas by means of a rotary ball having a bore. By rotating the ball a quarter turn (90 degrees) around its axis, the medium can flow through or is blocked. They are characterized by a long service life and provide a reliable sealing over the life span, even when the valve is not in use for a long time. As a result, they are more popular as a shut-off valve then for example the gate valve. Moreover, they are more resistant against contaminated media than most other types of valves. In special versions, ball valves are also used as a control valve. This application is less common due to the relatively limited accuracy of controlling the flow rate in comparison with other types of control valves. However, the ball valve also offers some advantages here. For example, the valve still ensures a reliable sealing, even in the case of dirty media.

  • FP20
  • Flowx
  • 8481202000

Machined Ball Valve Manufacturers


Feature

Port Full
Size DN15mm - DN300
Body Style 3 & 4 way,two pieces
Temperature Range -15℃~220℃
Pressure Ratings ASME Class 150, 300 (PN10 to PN40)
End Connections     Threaded, Tri-Clamp, Socket Weld, Butt Weld, RF Flanged
Body Materials DI/CI, WVB, SS304, Aluminium Alloy, SS316, UPVC, PP, CPVC
Ball Materials SS304, SS316, SS304L, SS316L, 2205, 2507
Seat Materials Standard: TFM 1600
Optional:  UHMWPE, RPTFE, PTFE, PPL
Applications According to the seat material

Related Products

不锈钢卡箍气动球阀侧面                           电动卡箍球阀

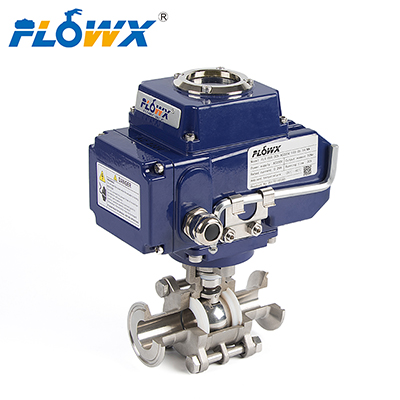

         Pneumatic stainless clamp ball valve                                                                      Electric stainless clamp ball valve

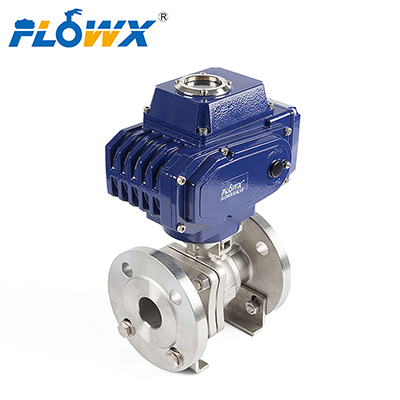

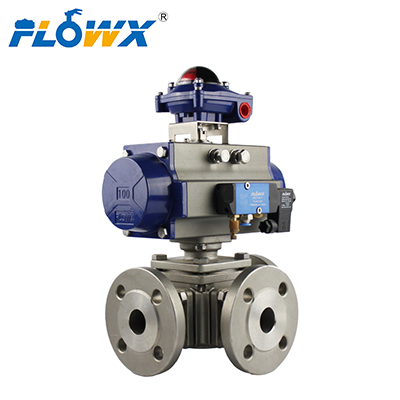

三通法兰气动球阀侧面                           电动法兰球阀                Pneumatic 3 way flanged ball valve                                                                 Electric 2 pieces flanged ball valve

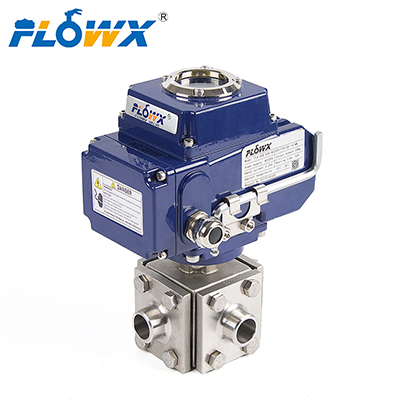

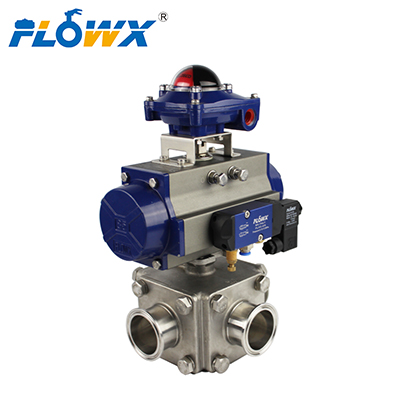

三通球阀                           电动四通对焊球阀             Pneumatic 3 way welded ball valve                                                                 Electric 4 way welded ball valve

螺纹球阀侧面                           电动三通螺纹球阀

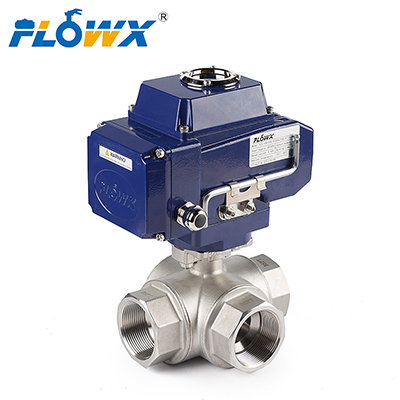

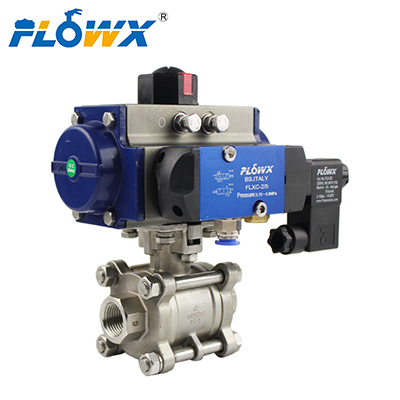

       Pneumatic 3 pieces threaded ball valve                                                                    Electric 3 way threaded ball valve

由令塑料气动球阀侧面                           电动三通UPVC球阀

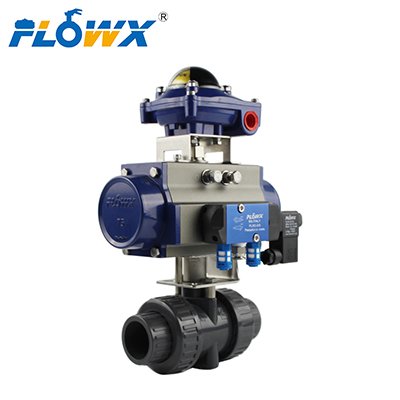

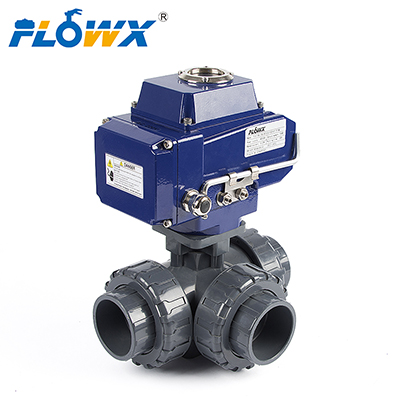

             Pneumatic UPVC union ball valve                                                                    Electric 3 way UPVC union ball valve


Actuator Feature


Pneumatic “DA” and “SR” Series

Type DA series is double acting and SR series is spring return (rack and pinion)
Normal Supply Pressure DA: 40 to 115 psi (2.7 to 7.9 bar); SR: 80 psi (5.5 bar)
Maximum Supply Pressure 120 psi (8.6 bar)
Air Connections:DA01 DA01: 1/8" female NPT; DA02 to DA05: 1/4" female NPT; SR02 to SR07: 1/4" female NPT
Housing Material Anodized aluminum body and epoxy coated aluminum end caps
Temperature Limits -40 to 176°F (-40 to 80°C)
Accessory Mounting NAMUR standard

Electric “FLX” and “FLX-E” Series


Power Requirements 110 VAC, 220 VAC, 24 VAC or 24 VDC (MD models not available in 24 VDC)
Power Consumption See instruction manual
Cycle Time (per 90°) FLX-01: 4 s; 01: 10 s; FLX-02 and FLX-E 02: 20 s; FLX-03 and FLX-E03: 30 s
Duty Rating 85%
Enclosure Rating NEMA 4X (IP67)
Housing Material Powder coated aluminum
Temperature Limits -22 to 140°F (-30 to 60°C)
Electrical Connection 1/2" female NPT
Modulating Input 4 to 20 mA
Standard Features Manual override, position indicator, and TD models come with two limit switches



Accessories


                    Photo       Model Code                               Description
General-Electric-Actuator-400-400





     FLOWX-FSEA


1.The Series is a low profile,compact, powerful actuator with customer-friendly features.

2.Manual declutchable handle lever.

3.Local high visibility dome postion indicator.

4.Digital interface available.

5.Optional microprocessor based moudulating control.

 Pneumatic-Actuator4







       FLXDA52-DA63

Quarter Turn Double Acting Pneumatic Actuator have this feature.
1.Rack and pinion actuator available in doubule acting spring returnicals.
2.Standard units have anodized aluminum bodies with polyster coated end caps.
3.Internal bidirectional travel stops.
4.Seacorr coating for harsh enviroments.
5.SIL3 capable.
6.Inregral porting.
7.NAMUR accessory compatible.

   2-5 Way,2-3 Way Solenoid Valves




       FLX-TMSV


1.Weatherproof NEMA4,4X and explosion proof housings available

2.Flying leads to DIN Connectors

3.Single or dual Coil

4.2/5 or 2/3 Operation

5.NAMUR mounted

6.High flow up to 1.4Cv

7.Intrinsically safe versions available

Limit Swtich





        FLX-2N


1.Discrete staus monitor for quarter turn rotary actuators

2.NEMA4.4X and IP66,IP67 ingress protection

3.High visibility done position indicator

4.Up to 6SPDT switches or non-contacting proximity switches

5.Switch pre-wired to internal teminal block

Application
