Industrial Valve Testing Systems for Performance And Reliability

Introduction

In industrial systems, valve reliability is not defined by design alone—it is proven through rigorous testing under real operating conditions. From high-pressure environments to corrosive and abrasive media, even minor performance deviations can lead to system instability, increased maintenance costs, or unplanned downtime.

To ensure consistent performance and long-term reliability, FLOWX has established a comprehensive valve testing laboratory built on one core principle:
test with precision, validate under real conditions.

Through advanced simulation and precision measurement, every valve is thoroughly evaluated before it reaches the field.

---

Why Valve Testing Matters in Industrial Applications

Industrial valves are exposed to demanding conditions, including:

• High temperature and high pressure

• Corrosive or abrasive media

• Frequent cycling operations

• Continuous process requirements

Without proper validation, these conditions may result in leakage, premature wear, unstable control performance, or even system failure.

A robust valve testing system allows manufacturers to verify product performance in advance, ensuring reliability, safety, and efficiency in real-world applications.

---

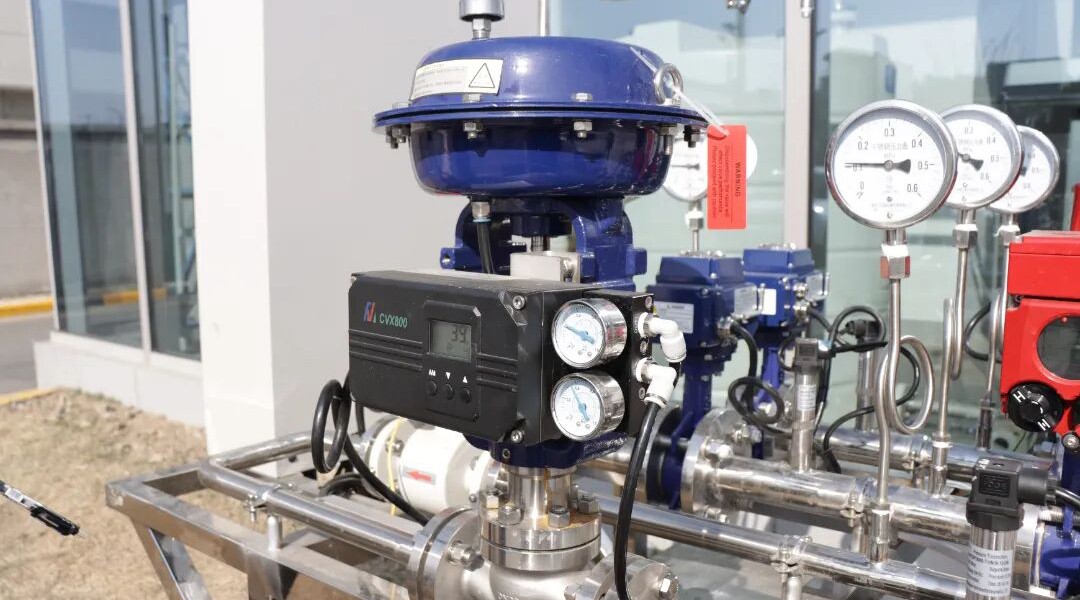

FLOWX Valve Testing Laboratory Overview

FLOWX has developed an integrated testing platform that combines:

• Real operating condition simulation

• Continuous fatigue testing

• Precision flow measurement

• Multi-scenario performance validation

This laboratory system enables comprehensive testing of valves, actuators, and accessories—from individual components to complete assemblies—ensuring consistent quality across all products.

---

Core Valve Testing Systems and Capabilities

---

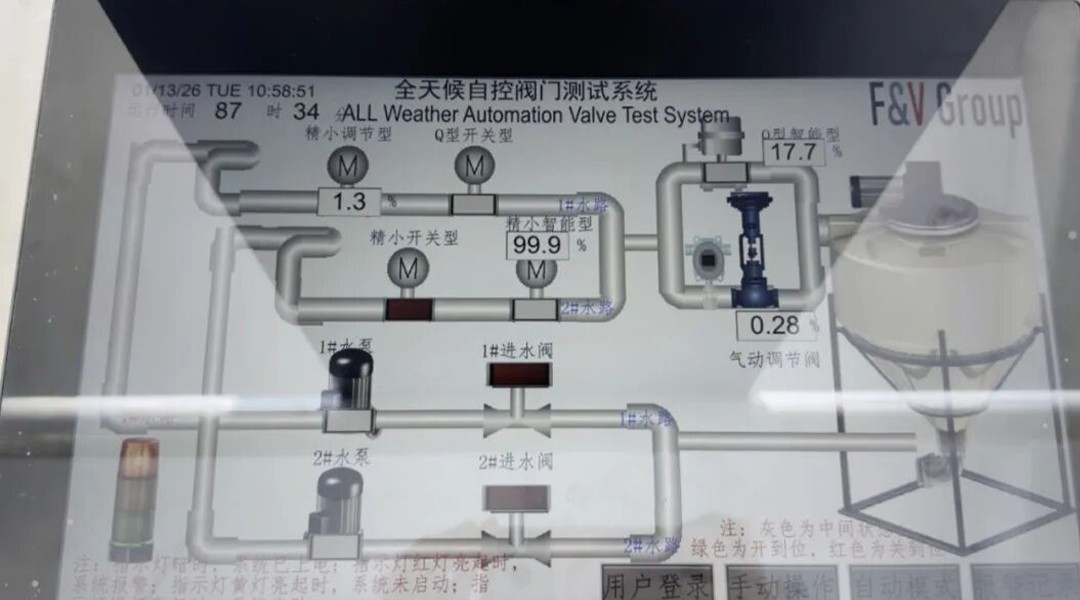

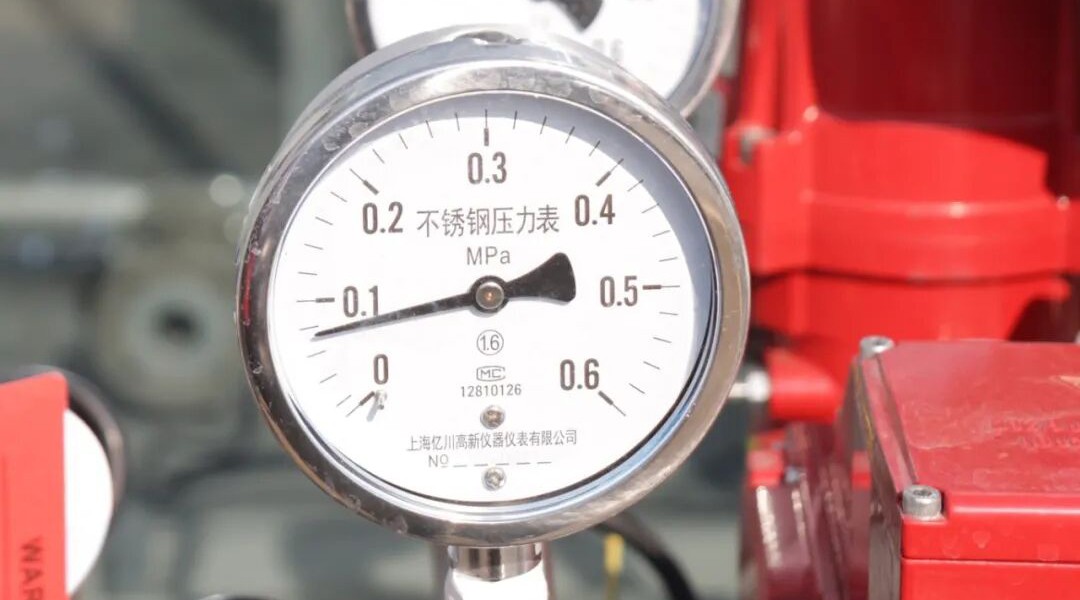

1. Environmental Simulation Testing System

This system evaluates the sealing performance and durability of actuators and valve accessories, including electric actuators, positioners, solenoid valves, and limit switches.

It simulates real environmental conditions such as wind, sunlight, and rainfall through automated testing cycles. Spray systems are used to replicate rain exposure while the system operates continuously.

This ensures reliable performance of valves and accessories in outdoor and variable environments.


---

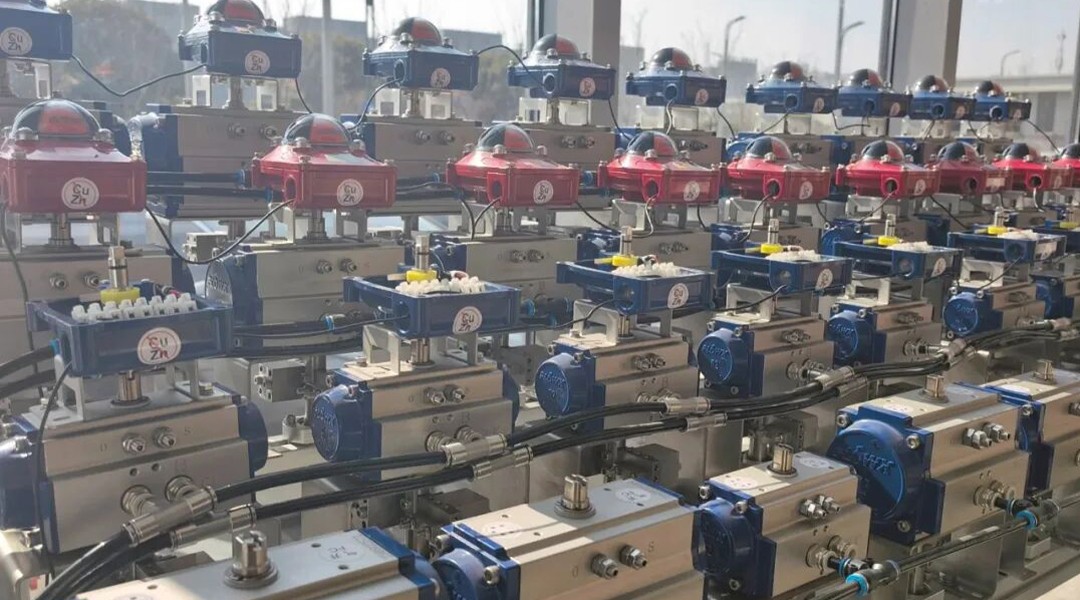

2. Actuator and Accessory Fatigue Testing System

Designed to verify actual service life, this system performs continuous testing under load conditions.

Key features include:

• 24-hour uninterrupted open/close cycles

• Testing of pneumatic cylinders and limit switches

• Realistic load simulation

This process ensures that critical components maintain stability and durability under high-frequency operation.

---

3. Powder Handling Condition Simulation System

This system replicates real powder handling conditions using gravity feeding and controlled material flow.

It is primarily used to evaluate:

• Wear resistance of butterfly valve rubber seats

• Sealing performance under repeated operation

The system also supports temperature-controlled testing and periodic sealing inspections, ensuring durability in abrasive and particulate environments.

---

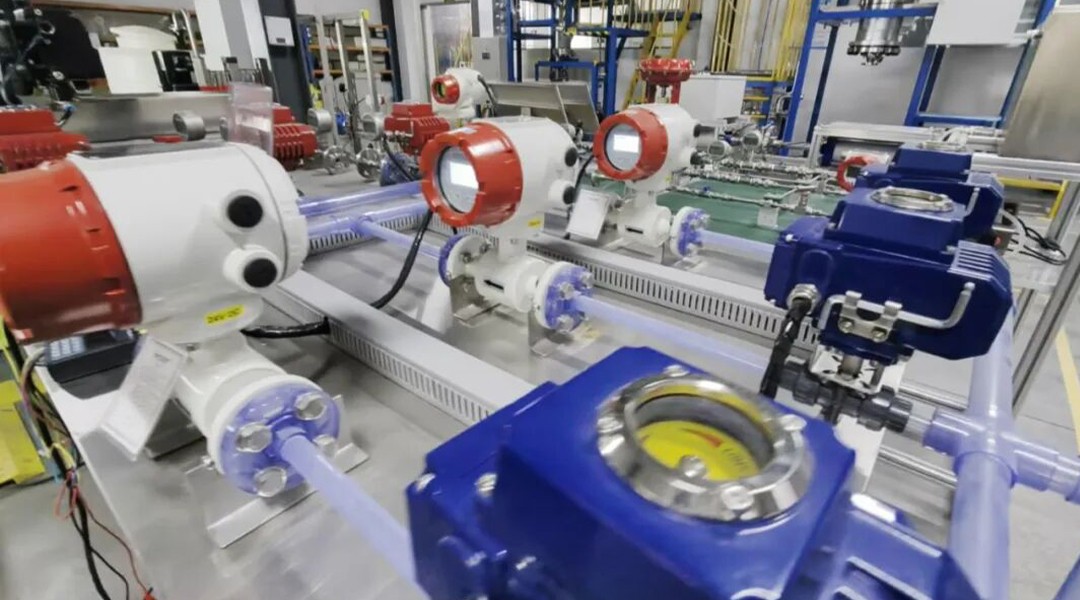

4. Precision Micro-Flow Testing System

FLOWX uses a dedicated micro-flow testing platform for small-size control valves.

The system enables precise measurement of:

• Flow coefficient (Cv range: 0.05–1.0)

• Flow regulation performance

Using a clean water circulation system with multi-branch design, it provides accurate testing for DN15–DN25 valves, ensuring stable and precise control in low-flow applications.

---

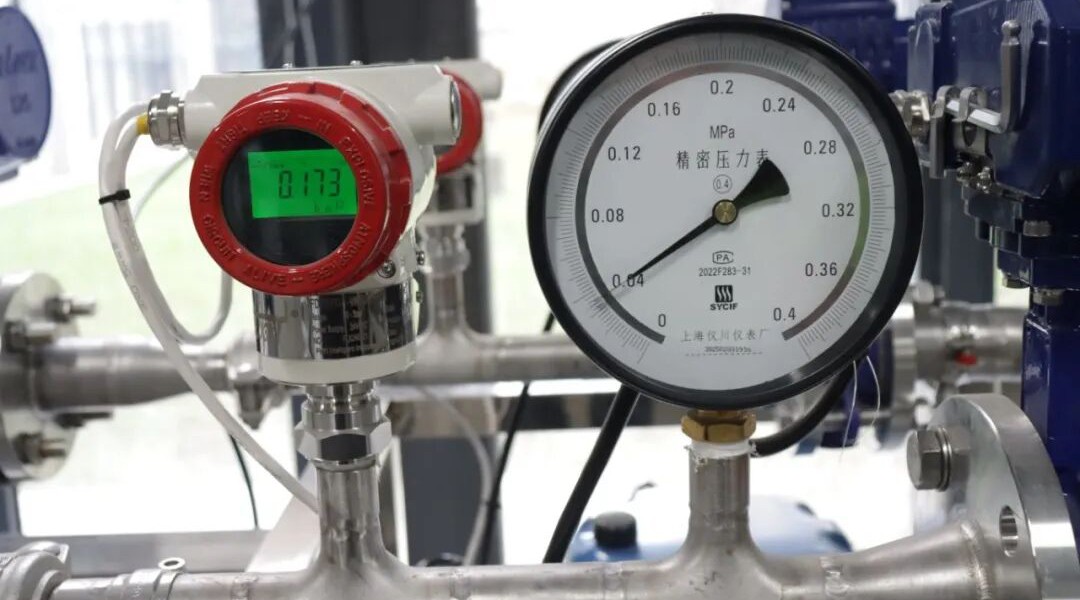

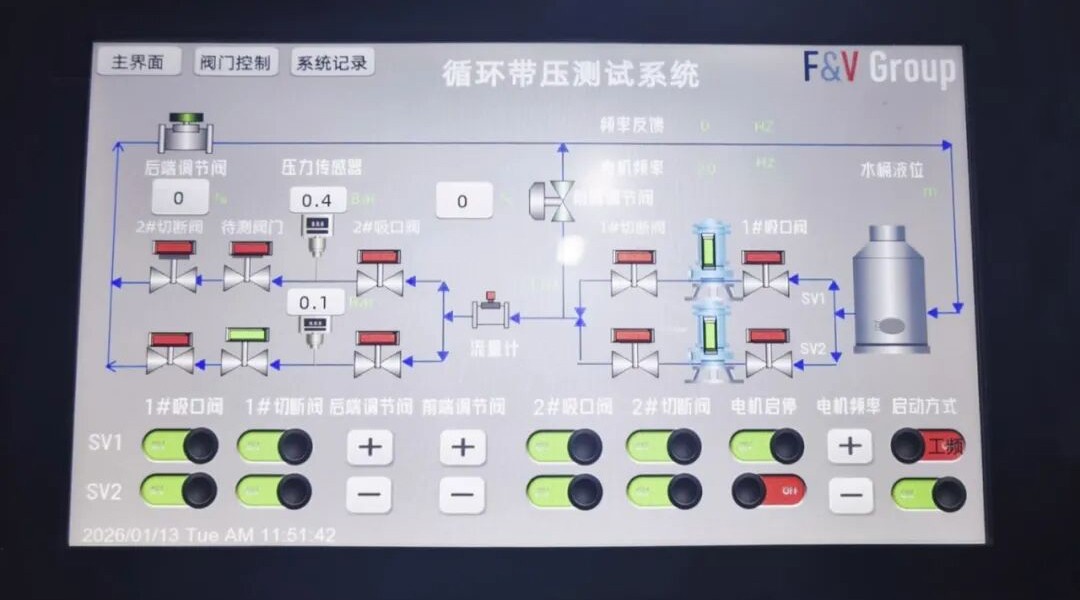

5. Pressure Cycling Fatigue Testing System

This system simulates real operating conditions under pressurized environments, enabling continuous fatigue testing for valves such as ball valves and butterfly valves.

It supports multi-medium testing and performs 24-hour continuous open/close cycles at a defined frequency to evaluate long-term durability and operational stability.

Temperature range: ambient to 120°C
Pressure range: 0–5 bar

This testing process ensures that valves maintain reliable sealing performance and structural integrity under repeated operation and pressure conditions.


---

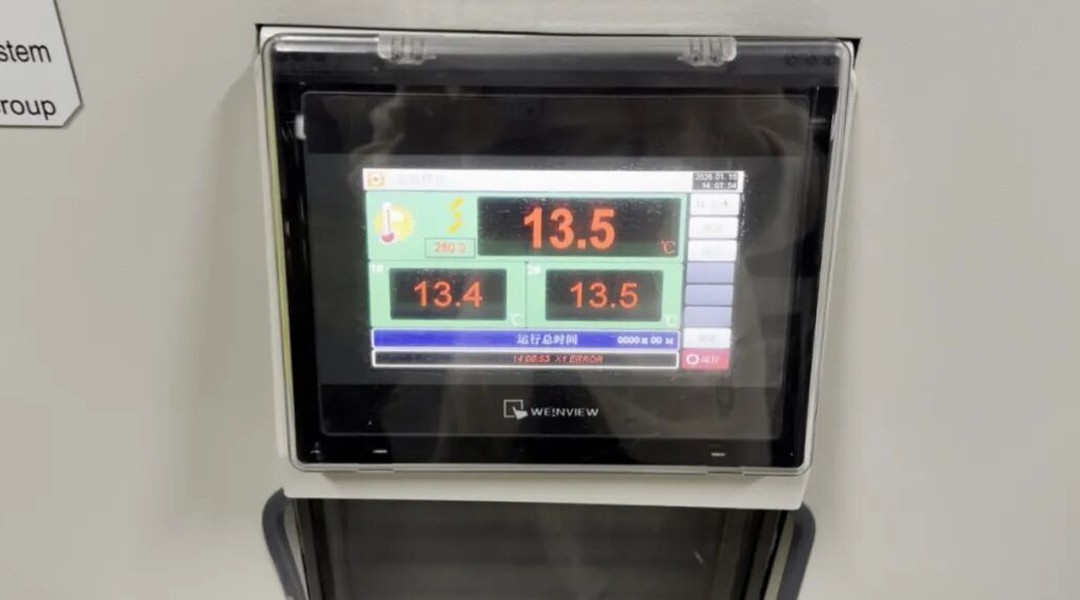

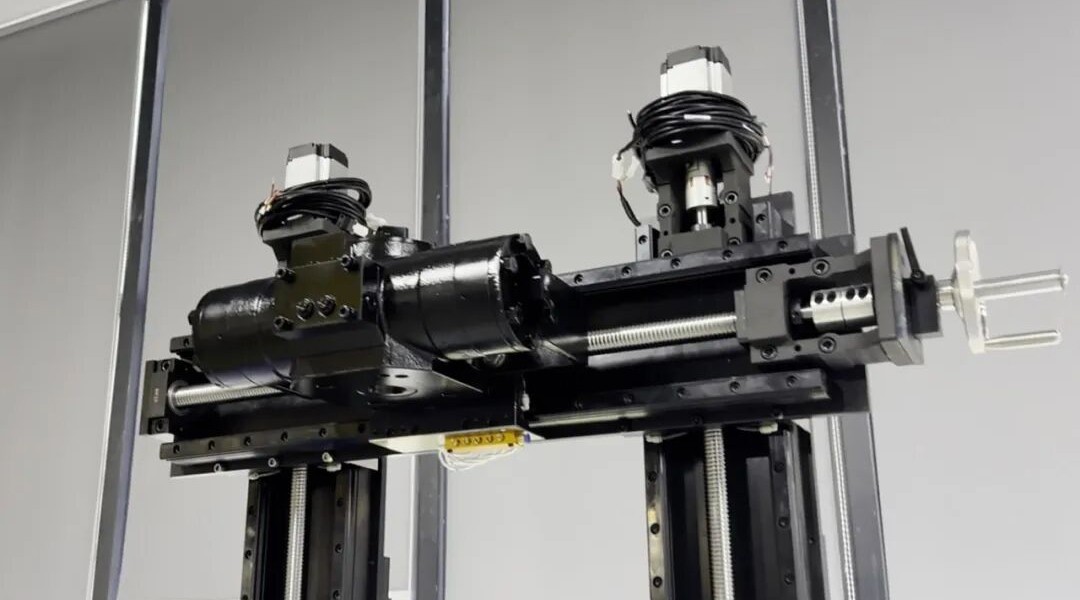

6. High Temperature and High Pressure Testing System

Designed for extreme operating environments, this system allows testing under both high temperature and pressurized conditions.

Key capabilities include:

• Heating up to 350°C using a high-temperature test chamber

• Adjustable steel fixtures for precise valve positioning

• Hydraulic actuators for high-torque operation

• Real-time torque monitoring through sensors

During testing, torque data is recorded and visualized as curves, enabling detailed analysis of valve performance and service life under severe conditions.

---

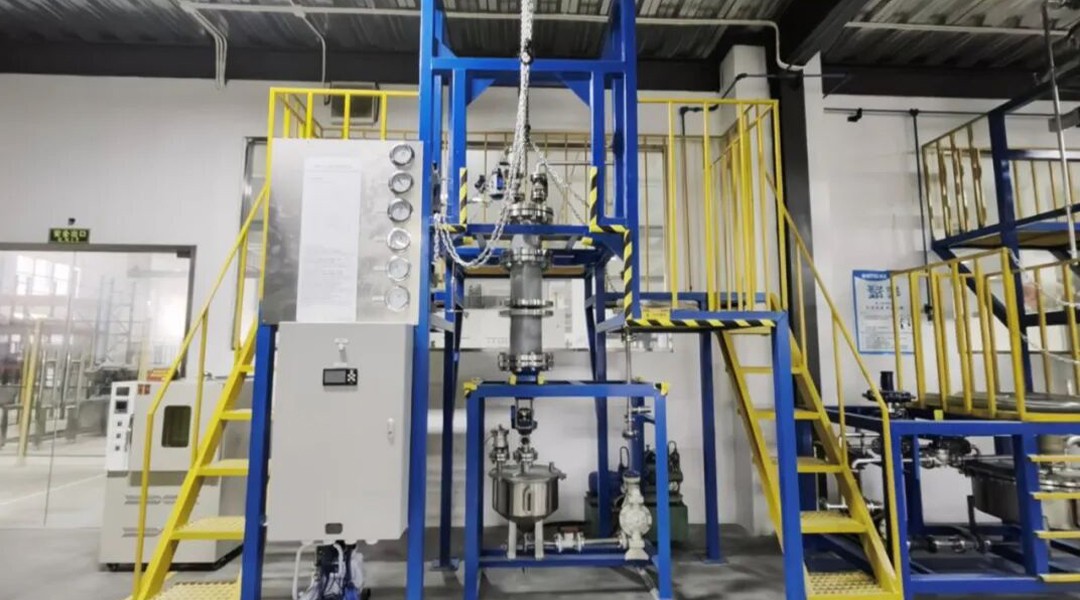

7. Slurry Condition Fatigue Testing System

This system is specifically designed for slurry applications and is used to test valves such as hard-sealed ball valves and eccentric hemisphere valves.

It simulates real operating conditions through:

• Continuous slurry circulation

• Temperature control from ambient to 120°C

• Automatic pressurization during operation

By replicating actual slurry flow conditions, the system evaluates wear resistance, sealing performance, and long-term operational stability.

---

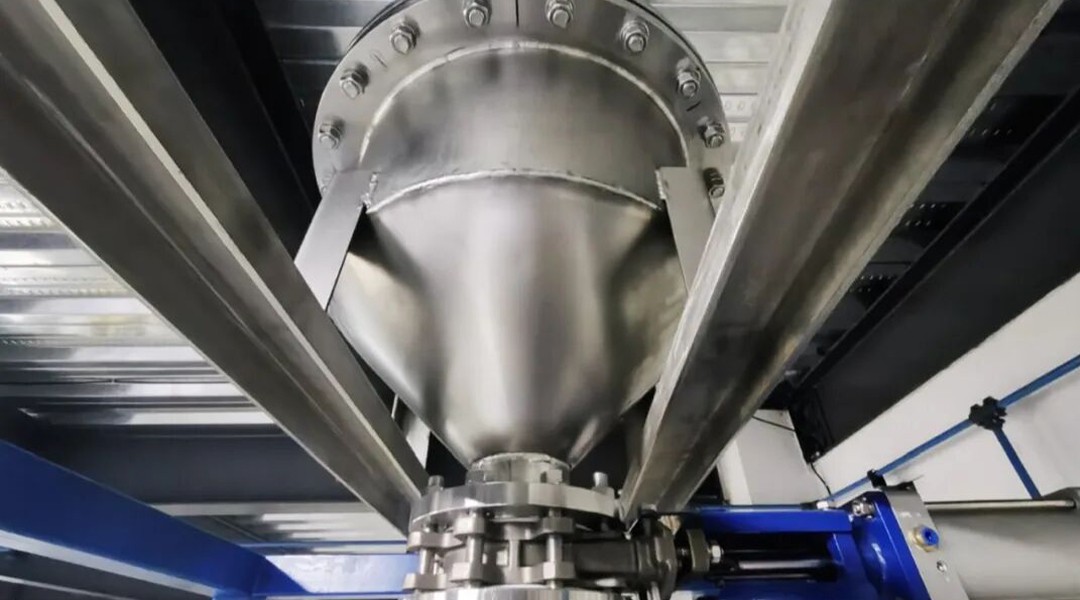

8. Discharge Valve Fatigue Testing System

This system focuses on discharge valves and related applications, testing both fatigue life and sealing reliability.

It simulates frequent open/close cycles under real operating conditions while continuously monitoring key parameters throughout the testing process.

This ensures accurate validation of valve performance and long-term operational stability.

---

From Testing to Performance: Ensuring Long-Term Reliability

Each testing system is designed to translate directly into real-world performance advantages, including:

• Extended service life

• Reduced leakage risk

• Stable and precise control

• Lower maintenance requirements

By validating valves under simulated working conditions, FLOWX helps customers minimize operational risks and improve overall system efficiency.

---

Quality Philosophy – Testing Under Real Conditions

At FLOWX, quality is built on a simple but critical principle:

Real conditions define real performance.

Rather than relying solely on theoretical standards, FLOWX emphasizes full-process simulation, multi-condition testing, and continuous validation.

This ensures that every valve delivered is fully prepared for real industrial applications.

---

Applications Across Industries

FLOWX valve testing systems support a wide range of industries, including:

• Petrochemical and chemical processing

• Water treatment and desalination

• Power generation

• Powder and bulk material handling

• Slurry and mining applications

This versatility demonstrates the ability of FLOWX valves to perform reliably across diverse and demanding environments.

---

Reliable Valves Start with Reliable Testing

In modern industrial systems, reliability is essential. FLOWX ensures this through comprehensive testing systems and strict quality control at every stage.

From environmental simulation to high-temperature and pressure testing, every validation step is designed to deliver valves that operate safely, consistently, and efficiently in real-world conditions.

Contact FLOWX to learn more about our industrial valve testing capabilities and customized solutions for your applications.
