How to Test Valves: A Complete Guide for Reliable Performance
Valves are the heart of countless industrial systems, ensuring smooth control of liquids, gases, and even solids. Proper testing of valves is critical to maintain system safety, efficiency, and reliability. In this comprehensive guide, we will walk you through how to test valves correctly, the different testing methods, standards you need to know, and key tips from industry experts. Whether you're maintaining a plant, inspecting new valves, or sourcing reliable valves, this guide is for you.
Why Valve Testing Is Important
Before diving into the methods, it’s important to understand why valve testing matters:
Ensures Safety: Defective valves can lead to catastrophic failures.
Confirms Quality: Tests verify the valve meets performance specifications.
Prevents Downtime: Early detection of leaks or malfunctions avoids costly shutdowns.
As a professional valve manufacturer, we at FLOWX rigorously test every valve to exceed global standards, ensuring your operations are always safe and efficient.
Common Valve Testing Methods
Testing methods vary depending on the type of valve and application. Here are the main techniques used worldwide:
1. Hydrostatic Testing
What it is: Filling the valve with water and applying pressure to test for structural integrity.
Purpose: Check for leaks in the valve body, bonnet, and sealing surfaces.
Typical Pressure: 1.5 times the rated pressure (according to API 598, ASME standards).
2. Pneumatic Testing
What it is: Using compressed air or inert gas instead of water.
Purpose: Detect even the smallest leaks using pressure decay or bubble tests.
When to Use: When water is unsuitable (e.g., for valves installed in systems sensitive to moisture).
3. Seat Leakage Testing
What it is: Verifying the tightness between the valve seat and closure element (disc, ball, etc.).
Importance: Even a slight leak can disrupt critical systems, especially in shut-off valves.

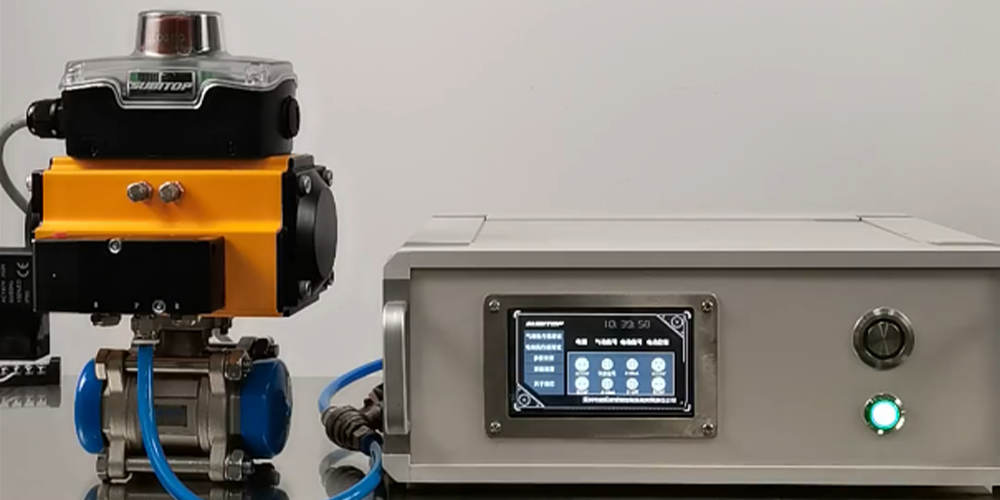

4. Functional Testing
What it is: Operating the valve multiple times to ensure smooth opening/closing without jamming.
Purpose: Test actuator performance, mechanical movement, and responsiveness.
5. Visual Inspection
What it is: Checking external and internal surfaces for cracks, porosity, or mechanical damage.
Tools: Magnifying glasses, borescopes, or dye penetrant inspection.
Key Standards for Valve Testing
Understanding the global standards helps you judge the quality of testing procedures:
Standard
Scope
API 598
Valve inspection and testing for gate, globe, ball, plug valves.
ASME B16.34
Requirements for pressure-retaining valves.
ISO 5208
Leakage testing of metallic valves.
DIN EN 12266-1/2
European standards for industrial valve testing.
At FLOWX, we strictly adhere to API 598, ASME, and ISO standards to ensure your valves are tested for the highest reliability.
How to Test Valves: Step-by-Step
If you need to test valves yourself or supervise third-party inspections, follow these proven steps:
Step 1: Preparation
Clean the valve inside and outside.
Verify documentation: valve type, rating, pressure, test procedures.
Ensure the right testing medium (water, gas).

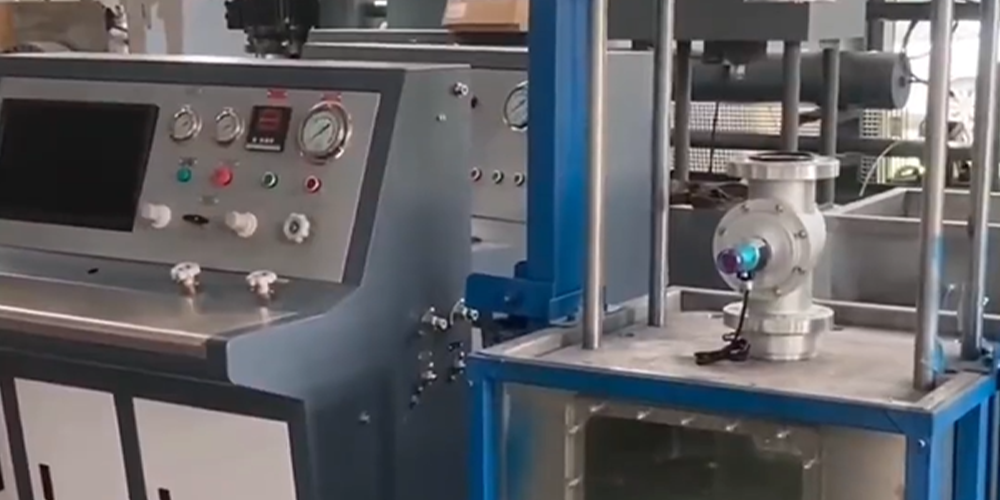

Step 2: Set Up Testing Equipment
Use calibrated gauges.
Secure the valve properly to the test bench.
Follow safety protocols (PPE, no standing in line with pressure).
Step 3: Perform Hydrostatic Shell Test
Fill valve with water.
Apply 1.5x rated pressure for a specified time.
Inspect externally for leaks (no bubbles, drips).
Step 4: Perform Seat Leakage Test
Close the valve.
Apply pressure to one side.
Measure leakage rate or use bubble method.
Step 5: Functional Test
Open and close the valve multiple times under pressure.
Verify smooth motion without excess torque.
Step 6: Record Results
Note any deviations.
Issue certificates of compliance if testing for clients.
Common Valve Testing Challenges
Challenge
Solution
Small leaks hard to detect
Use pneumatic tests with bubble inspection.
Material compatibility issues
Ensure test fluid won’t corrode valve internals.
Inaccurate readings
Calibrate equipment regularly.
When Should You Test Valves?
Before installation: To confirm manufacturing quality.
After repairs or maintenance: To validate repairs.
Periodically during operation: As part of preventive maintenance programs.
After major incidents: E.g., system overpressure or environmental accidents.
Trust FLOWX for Professionally Tested Valves
While valve testing is a critical step to ensure safety and performance, starting with high-quality, properly tested valves makes all the difference.
At FLOWX, every valve goes through:
100% Hydrostatic Testing
100% Seat Leakage Testing
Visual and Dimensional Inspection
Compliance with API, ASME, ISO standards
Certified documentation for your records
✅ Reduce downtime ✅ Increase operational safety ✅ Save testing costs long term
Explore our full range of valves today and request a testing certificate with your order!
Knowing how to test valves is essential for engineers, maintenance teams, and procurement managers alike. Whether you are verifying a new delivery or maintaining your systems, using the right methods and understanding the standards is key.
And if you want peace of mind right from the start — choose FLOWX valves, tested and proven for the toughest environments.
