PRODUCT DETAIL

Flange Type - Turbine Flow Meter

The FTF70 turbine flowmeter is widely used for low flow, low viscosity liquid measurements. The sensor signal is converted to an intelligent signal output by a microcomputer processor design.

  • FTF70-F type
  • FvLuoky


  Product image

FLOWX company main produce: Flange Type - Turbine Flow Meter

                                                                                                  (Please contact us Get Free Quote Now. )

Turbine flowmeter FTF70 Series.pdf



Flange Type - Turbine Flow Meter-1

Flange Type - Turbine Flow Meter- Product Image-1


Flange Type - Turbine Flow Meter-2


Flange Type - Turbine Flow Meter- Product Image-2


  Main feature


Display: 3-rows  LCD flow, cumulant, percentage, etc. display

Accuracy: ±1%, ±0.5%

The structure is simple, light and responsive.

A variety of alloy impeller material selection

Explosion-proof cast aluminum housing

4-20mA and pulse output with HART and RS485 communication



  Product parameters



Model  FTF70-F (50)-N611Y-112-MA-4-40m3/h
caliber DN50
pipe material SUS304
Impeller material SUS 316L
Protection grade IP65
pressure 4.0MPa
Structure type One type
supply 24V DC
output 4-20mA
Communication protocol HART
Electrical interface M20*1.5,Cast aluminum housing with LCD head
Tolerance 1.0,no explosion-proof
measure range 4-40m3/h



 Other products


Flange Type - Turbine Flow Meter - Product Image

Flange Type - Turbine Flow Meter - Product Image

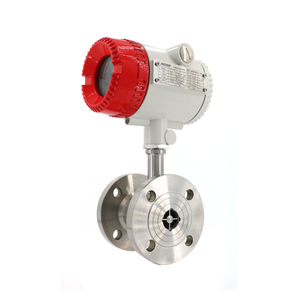

Turbine Gas Flow Meter - Product Image

Turbine Gas Flow Meter - Product Image

 Product application field


Flowmeter - Product Application - Chemical Industry

Chemical Industry


Flowmeter - Product Application - printing and dyeing

printing and dyeing


Flowmeter - Product Application - Pharmaceutical

Pharmaceutical

Flowmeter - Product Application - Water Application

Water Application


Flowmeter - Product Application - Metallurgical application

Metallurgical application


Flowmeter - Product Application - Food Application

Food Application

Flowmeter - Product Application - Petroleum application

Petroleum application


Flowmeter - Product Application - Electric Power

Electric Power


Flowmeter - Product Application - Environmental Engineering

Environmental Engineering


  Certificate


Flowmeter - Certificate - British head office product operation

British head office product operation


Flowmeter - Certificate-British head office product operation authorization certificate

British head office product operation authorization certificate



Freyci Intelligent Instrument Co.,  has signed a cooperation agreement with British FvLuoky Instruments Co., Ltd. to obtain the authorization to use the FvLuoky trademark and products, as the exclusive partner of FvLuoky brand in China, aiming to create the world's strongest industrial automation product line.


  Company Profile


Freyci Intelligent Instrument Co., Ltd. is a joint venture company controlled by Hong Kong's FLOWX Group, which is committed to providing customers with integrated solutions for automated instrumentation and industrial automation. The company's products and services include municipal sewage, urban water supply and drainage, environmental engineering and monitoring, water conservancy engineering, metallurgy and smelting, chemicals, electricity, pharmaceuticals, food and beverage, petroleum, paper, printing and dyeing, electronics, desalination and other industries.

The factory is located in Shanghai and covers an area of 25,000 square meters. It is the production base of China's largest Fuyi Intelligent Instrument Co., Ltd., with sales and service centers in Shanghai, Beijing, Shandong, Guangdong, Henan, Shijiazhuang, Tianjin, and Chengdu.

Freyci Intelligent Instrument Co., Ltd. adheres to the concept of “trust, with a heart” to adhere to the core concept of technology, innovation and dedication. We will do our utmost to provide our customers with high quality products and services and help them achieve outstanding achievements.


Flowmeter - Company Profile  Flowmeter - Company Profile-1  Flowmeter - Company Profile-3



  Company Profile


How is the flow meter warranty?

could provide 12~18 months warranty for your flow meter .


Could you provide me the shortest lead time?

Our shortest lead time is 5~7 days after your payment.


How to pay for that ?

Of course we could accept T/T,Paypal,Trade Assurance Order. You will get full protection for your orders ,more details kindly click Trade Assurance .


Do you accept OEM?

Yes, we accept OEM.


How to deal with the after-sales?

We will have professional engineers to answer your questions during installation and use..
