PRODUCT DETAIL

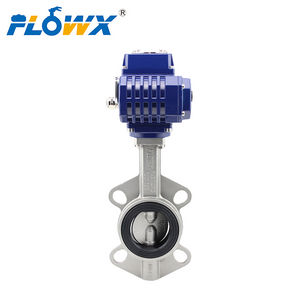

Electric Butterfly Valve Acronym

1.Designed to MASS-SP67,AP1609 standards;
2.Wafer ends designed To PN16, PN10, DIN16, JIS10K,16K, ANSI B16.1/16.5, BS4504, DIN2015;
3.Working pressure:225PSI TO 8" 150PSI To 12";
4.Shell test:350PSI,Seal Test:250PSI;
5.Direct Mount ISO5211 for low profile, Cost-efficient operation;
6.electric actuator.
  • FP1003I13E3
  • Flowx
  • 8481909000

Electric Butterfly Valve Acronym


Valve Feature

   FEATURES

  • Line Sizes:1 to 48" .

  • End Connections:Wafer.

  • Pressure Limits:225PSI TO 8" 150PSI To 12".

  • Wetted Materials:Body: 304 SS;  Seat: 304 SS; Seal: PTFE.

  • Temperature Limits:-25 to 150°C.

  • Other Materials::O-ring: NBR; Stem Nut:416 SS, Top Silk:304 SS, Long/Shot Bushing: PTFE, Thrust Insert:304 SS

  • Agency Approvals:Meets the technical requirements of MASS-SP67,AP1609 standards.

Actuator Feature

  • ACTUATORS

  • Electric “FLX” and “FLX-E” Series

  • Power Requirements:110 VAC, 220 VAC, 24 VAC or 24 VDC (MD models not available in 24 VDC).

  • Power Consumption:See instruction manual.

  • Cycle Time (per 90°):FLX-01: 4 s; 01: 10 s; FLX-02 and FLX-E 02: 20 s; FLX-03 and FLX-E03: 30 s.

  • Duty Rating:85%.

  • Enclosure Rating:NEMA 4X (IP67).

  • Housing Material:Powder coated aluminum.

  • Temperature Limits:-22 to 140°F (-30 to 60°C).

  • Electrical Connection:1/2" female NPT.

  • Modulating Input:4 to 20 mA.

  • Standard Features:Manual override, position indicator, and TD models come with two limit switches.



Dimensions

微信截图_20191015104153
