Double Eccentric Type Butterfly Valve

Flowx double offset butterfly valve also called as the high performance butterfly valve, with the epoxy coating, double offset design, generally, the regulating ratio is the double than the normal butterfly valve. Is a new type of butterfly valve designed based on the advantages of absorbing several different structural butterfly valves. The valve plate sealing surface of this butterfly valve is a ball arc body, and the sealing machanism achieves a true dynamic seal through the systerm pressure, so it has excellent cutting performance and durability performance. Its small size, light weight, a wide range of manufacturing, easy maintenance.

  • FP100I10
  • FLOWX
  • 8481804090

  Double Eccentric Type Butterfly Valve


Handle-High-Performance-Butterfly-Valves-400-400

Handle High Performance Butterfly Valves

Electric-High-Performance-Butterfly-Valves-400-400

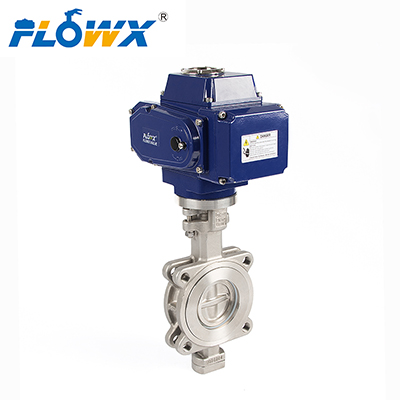

Electric High Performance Butterfly Valves


Main-Photo-400-400Butterfly Valve Manufacturers in China


Get a quote


  High Performance Butterfly Valve


        Details


Product Description

  • Triple eccentric butterfly valve can meet the requirements of high temperature, high pressure abnd strong corrosion, high wear and other working conditions, with light weight, compact structure, low operating torque,etc. can replace the conventional gate valve, globe valve and ball valve under most conditions.

  • High performance butterfly valve is a new type of butterfly valve designed based on the advantages of absorbing several different structural butterfly valves.

  • The valve plate sealing surface of this butterfly valve is a ball arc body, and the sealing mechanism achieves a true dynamic seal through the syetem pressure, so it has excellent cutting performance and durability performance. Its small size, light weight, a wide range of manufacturing, easy maintenance.



Features

  • The sealing performance is good and the reliability of the system is improved.

  • Small frictional resistance, open and close effort, flexibility.

  • Long service life,can achieve repeated switching.

  • High pressure and high temperature resistance, wide application range.




  Product Description

Product Description

  • All listed output torques are expressed in inch pounds of torque (in. lbs.).

  • Charts for available air pressure are expressed in pounds per square inch (P.S.I.).

  • FLOWX actuators offer ±5° adjustment in the open and closed positions on DA52 through DA-125 models.

  • For all other models, adjustment is in the open position only.

  • The closed position is 0° fixed. Optional retrofit kits are available to allow for adjustment in both open and closed positions on the DA-160, DA-200 and DA-270 models.


General Application

  • Ideally suited for many applications within the heating ventilation and air conditioning, water treatment and irrigation markets.

Technical Data

  • Rotation angle:0° to 180° Adjustable angle 0° to 180°

  • Air pressure:    2.5~8bar(Double acting), 3~8bar(Single acting)

  • Operating ambient temperature:     Standard Type:-20°C~+80°C

  • High temperature Type:     0°C~+180°C

  • Low temperature Type:     -45°C~+60°C

  • Max Working Pressure:    10bar

  • Pressure:     5 to 10 bar

  • Work media:     Air (PNEUROP/ISO Class 4)

  • Connections:     ISO 5211 for brackets

  • DIN 3337 coupling (star shaped)

  • VDI/VDE 3845 for accessories

  • NAMUR for work media

  • Air supply connection:1/8" & 1/4" G type thread.

  • Surface material:     Hard anodized - 40μm

  • Life time:     One million times

  • Accessories:     positioner, Air Filter Regulator, lock up valve, travel switch, handwheel, etc...
