3-Piece Handle Lever Stainless Steel Clamp Ball Valve

-Hand lever operated, available for the valves's size less than DN150;
-Stainless steel valve body and trim;
-3-piece design, easy to setup and disassemble.

  • FP2001-53E3
  • FLOWX
  • FLOWX-HCBV
Related Products

123


Features

- FLOWX 3-piece ball valve is designed for most of the industrial pipe line as full port product.

-Size:1/4"~4"

-Working pressure: 1000psi

-Threaded end: optional BSPT, NPT, DIN2999

-Female thread end, clamp end, flange end, butt weld end and socket welded end. Locking device handle(optional)

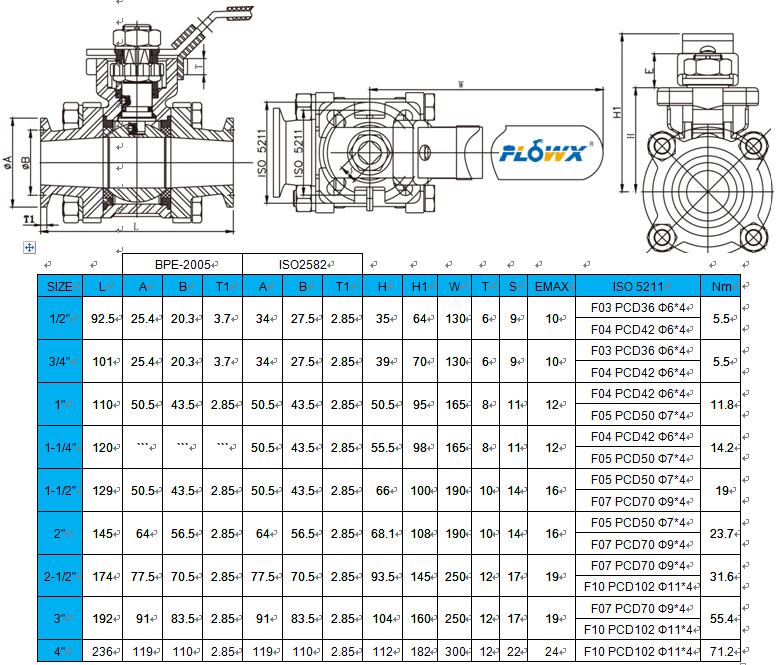

Dimension List
Dimension List
