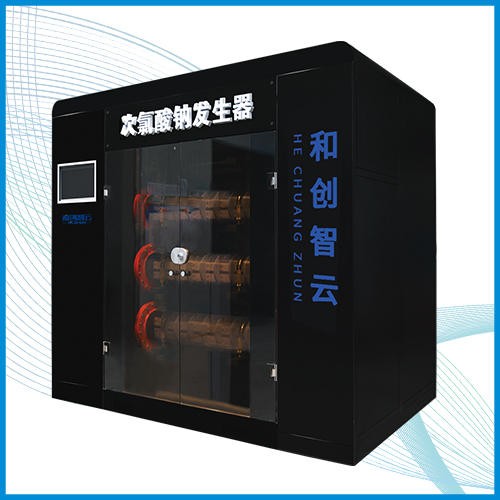

HCCL High-power Sodium Hypochlorite Generator
Sodium hypochlorite generator used raw materials: salt. When for drinking water disinfection, raw material salt shall conform to the requirements of <National Food Safety Standard>. With the softened purified water [ total hardness below 10mg/L (calculated based on CaCO3)], configure into weak brine of 3% concentration and transport to electrolytic tank, by way of membrane-less electrolysis method, make into 6000~8000 ppm sodium hypochlorite solution for storage and chemical dosing.
Product Model
Equipment Model Active chlorine production (g/h) Water consumption (m³/h) Salt consumption (kg/h) DC consumption (KW) Overall dimension L*B*H (mm)
HCCL-1000 1000 0.16 3.2 4.3 1100*550*1700
HCCL-2000 2000 0.32 6.4 8.6 1300*650*1700
HCCL-3000 3000 0.48 9.6 12.9 2600*1350*2200
HCCL-4000 4000 0.64 12.8 17.2 2600*1350*2200
HCCL-5000 5000 0.8 16 21.5 2600*1350*2200
HCCL-6000 6000 0.96 19.2 25.8 2600*1350*2200
HCCL-7000 7000 1.12 22.4 30.1 2600*1350*2200
HCCL-8000 8000 1.28 25.6 34.4 2600*1350*2200
HCCL-10000 10000 1.6 32 43 2600*1350*2200
HCCL-50000 50000 8 41.6 215 Design based on project
Technical Features and Advantages
1. Adopting acrylic acid or polyvinyl chloride transparent type electrolytic tank, convenient for monitoring the internal electrode running state;
2. Multiple framework materials selection; anti-corrosive aluminium profile, powder spraying, 304SS, 316 etc;
3. Matched with inflow automatic pretreatment device, extending electrode pickling cycle, reducing pickling frequency, extending electrode service life;
4. PLC control full-automatic operation, continuously testing process parameters, temperature, electrolyte, operating state etc. For guaranteeing the system’s reliable high efficient operation;
5. Accurate electrolyte automatic configuration and concentration detection system, accurate preparation of electrolyte;
6. Modular design, making equipment overhaul more convenient, equipment installation more efficient;
7. Selection of re-polarized electrode design, enhancing equipment efficiency, reducing operating cost;
8. Technical support for multiple patent designs, ensuring the safe and stable operation of the equipment;
9. The design using high current/low voltage process, enhancing electrolytic efficiency, guaranteeing the operating security of equipment;
10. Supporting internet cloud monitoring, mobile phone APP and other remote monitoring, more safe, convenient, more intelligent operation.
Sodium Hypochlorite Generator’s Electrolyzer
1. Electrolyzer’s anode selects pure titanium Ta1 as the base material+DSA special technical coating, (using ruthenium , iridium and other precious metal oxide for implementing 21 layer of repeated coating) to guarantee the chlorine-evolution effect, and improve the equipment efficiency.
2. Electrolyzer’s cathode selects pure titanium Ta1 materials for manufacture.
3. One electrolyzer is set up with multiple electrolysis units, with simple composition, reducing the inter-electrode connecting bus, saving contacting power consumption.
4. Circular transparent visible electrolyzer design, electrode operating state is clear at a glance.
5. Experiment on electrode enhanced life has reached above 250 hours (GB/T 12176 requires to be greater than 20 hours) to guarantee the service life of anode coating reaches a length of over five years.
6. Electrolyzer adopts vertical titanium electrode assembly, its electrode structure design can rapidly and effectively remove the hydrogen in each electrolyzer, to prevent bubble enlargement in the hydrogen production process, reduce the hydrogen attachment on the electrode surface which increases resistivity, and causes solution concentration fluctuation.
7. To guarantee the safe hydrogen discharge, each electrolyzer is an independent hydrogen discharge.
How do we transform salt into NaClO disinfectant?
1. Softened water equipment
2. Efficient salting machine
3. Salt tank
4. Salt Dissolving Pump
5. Soft water tank
6. Dilute brine conveying device
7. PLC control cabinet
8. Pickling device
9. Sodium hypochlorite generator
10. Hydrogen detector
11. Hydrogen exhaust fan
12. Sodium hypochlorite storage tank
13. Sodium hypochlorite dosing system
14. Residual chlorine detector
