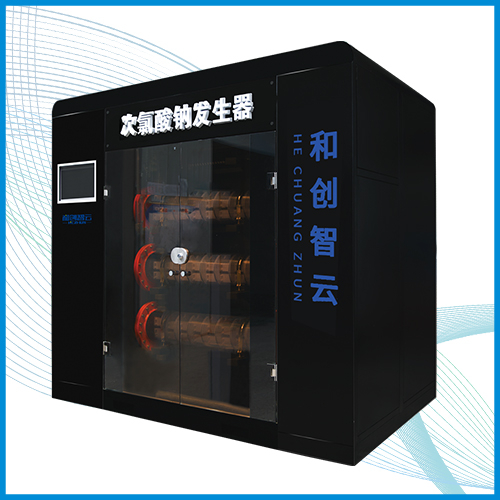

HCCL combined type sodium hypochlorite generator

HCCL High-power Sodium Hypochlorite Generator

HCCL combined type sodium hypochlorite generator
Equipment specifications: 50-500g/h, suitable for water plants below 2000 cubic meters.
Scope of application: disinfection of small and medium-sized water purification and sewage treatment
1120*850*1800
HCCL Swimming Pool-specific Sodium Hypochlorite Generator

Equipment specifications: 800-4000g/h, suitable for 2000-8000m3 water plants.
Scope of application: disinfection of small and medium-sized water purification and sewage treatment
1220*1040*1800
HCCL High-power Sodium Hypochlorite Generator

Equipment specifications: 5000-50000g/h, suitable for water plants above 10,000 square meters
Scope of application: large and medium-sized water purification, sewage, circulating water and other disinfection treatment projects
2500*1500*2200
HCCL Simple Type Sodium Hypochlorite Generato

Equipment specifications: 50-200g/h, suitable for water plants below 1000 square meters.
Scope of application: disinfection treatment projects such as rural drinking water and secondary water supply.
700*500*1260

HCCL combined type sodium hypochlorite generator

Product Model

Equipment Model	Active chlorine production (g/h)	Input voltage	DC consumption (KW)	Overall dimension LBH (mm)
HCCL - 50	50	220VAC 50Hz	0.3	85014501366
HCCL - 100	100	220VAC 50Hz	0.6	85014501366
HCCL - 200	200	220VAC 50Hz	1.2	85014501366
HCCL - 300	300	220VAC 50Hz	1.8	85014501366
HCCL - 500	500	220VAC 50Hz	3.0	85011501366 75011501080

Inquire More Now

Technical Features and Advantages

1. Anti-corrosive aluminium proﬁle framework design or PVC structural design aesthetic degree higher;
2. Small equipment occupied area: 850 * 2000mm;
3. Water volume to be treated: 1000-10000 m3/day;
4. Power supply voltage: 220VAC;
5. PLC automatic control, matching HMI interface, achieving the equipment automatic operation, automatic pickling, simple operation;
6. Supporting internet of Things, mobile APP monitoring function.

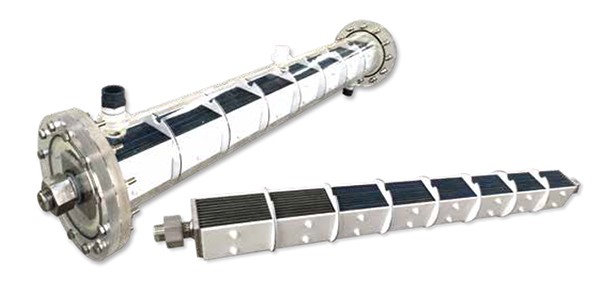

Sodium Hypochlorite Generator’s Electrolyzer

$Sodium Hypochlorite Generator\'s Electrolyzer$

1. Electrolyzer’s anode selects pure titanium Ta1 as the base material+DSA special technical coating, (using ruthenium , iridium and other precious metal oxide for implementing 21 layer of repeated coating) to guarantee the chlorine-evolution eﬀect, and improve the equipment eﬃciency.

2. Electrolyzer’s cathode selects pure titanium Ta1 materials for manufacture.

3. One electrolyzer is set up with multiple electrolysis units, with simple composition, reducing the inter-electrode connecting bus, saving contacting power consumption.

4. Circular transparent visible electrolyzer design, electrode operating state is clear at a glance.

5. Experiment on electrode enhanced life has reached above 250 hours (GB/T 12176 requires to be greater than 20 hours) to guarantee the service life of anode coating reaches a length of over ﬁve years.

6. Electrolyzer adopts vertical titanium electrode assembly, its electrode structure design can rapidly and eﬀectively remove the hydrogen in each electrolyzer, to prevent bubble enlargement in the hydrogen production process, reduce the hydrogen attachment on the electrode surface which increases resistivity, and causes solution concentration ﬂuctuation.

7. To guarantee the safe hydrogen discharge, each electrolyzer is an independent hydrogen discharge.

Inquire More Now

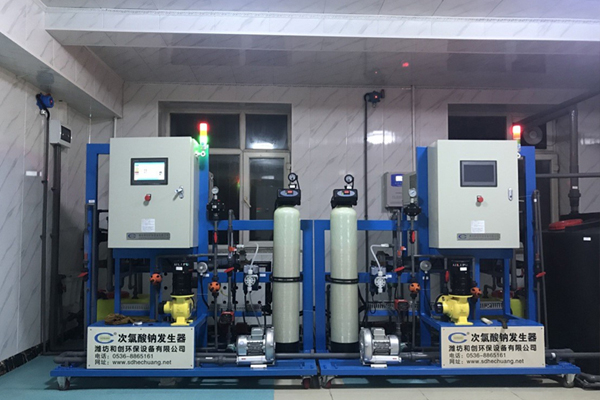

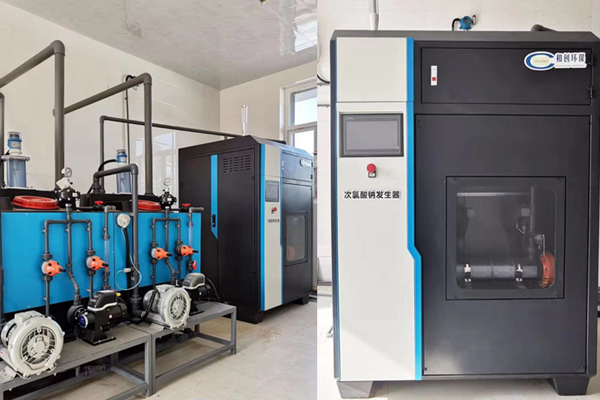

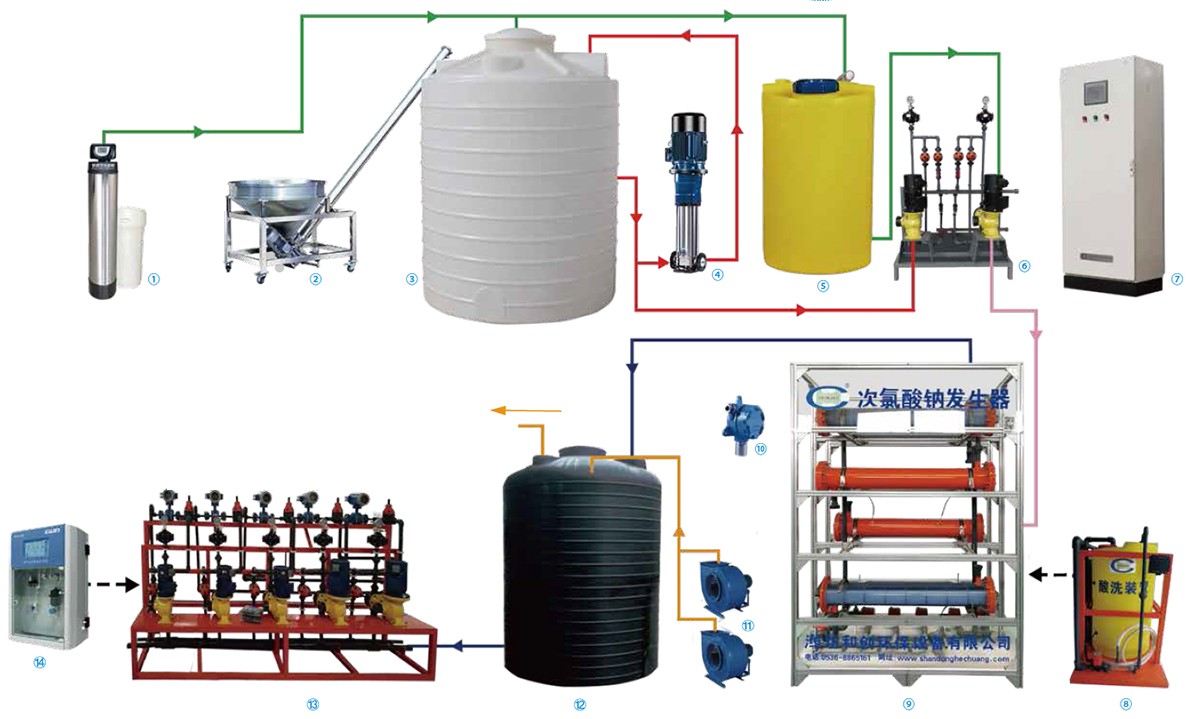

How do we transform salt into NaClO disinfectant?

1. Softened water equipment
2. Efficient salting machine
3. Salt tank
4. Salt Dissolving Pump
5. Soft water tank
6. Dilute brine conveying device
7. PLC control cabinet
8. Pickling device
9. Sodium hypochlorite generator
10. Hydrogen detector
11. Hydrogen exhaust fan
12. Sodium hypochlorite storage tank
13. Sodium hypochlorite dosing system
14. Residual chlorine detector

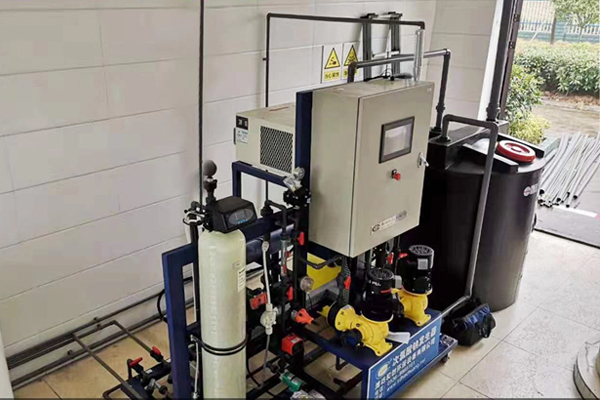

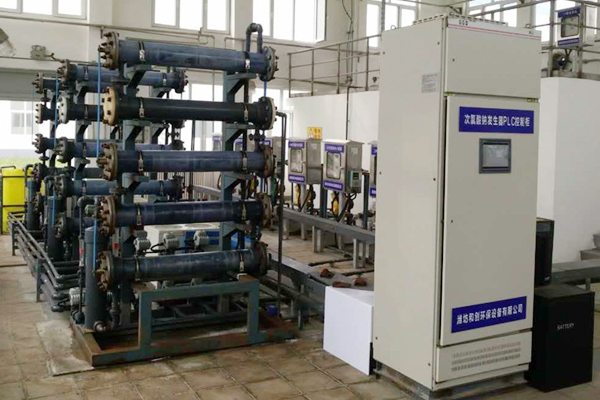

Customer's Real Case

Hebei Hengshui Shenzhou South-to-North Water Diversion Supporting Project-Shenzhou Water Purification Plant
Water Plant Disinfection Project in Mengda Industrial Park, Wushen Banner, Inner Mongolia
Qitaihe Boli County Water Plant in Heilongjiang Province
Bailizhou Water Plant, Zhijiang City, Yichang City, Hubei Province
