Pneumatic V-Type Flanged Ball Valves

- Founded in 2006, FLOWX has become China's largest valve and actuator manufacturer.
- The products have passed ISO9001 and CE certification.
- The valve life is guaranteed for 5 years.
- We provide one-stop sourcing service for you.
- The dozens of series of ball valves, butterfly valves, electric actuators, pneumatic actuators, and accessories.
  • FLOWX
  • FLOWX-PVBV

FLOWX company main produce: Pneumatic V-Type Flanged Ball Valves

(Please contact us Get Free Quote Now. )

Features & Benefits


  • 1/2” through 8”

  • wafer or flange connection

  • 150LB working pressure

  • Temperature rating varies from with o-ring material

  • With characterized V-ports, slotted ports or custom ports,

  • V-Control Ball Valves provide accurate flow control

  • Available in 3-Piece and Flanged bodies, V-Control valves

  • 0ffer superior rangeability, repeatability and high flow capacity.

  • Designed for easy automation

  • Ideal control element in process piping systems

  • Inspection and testing meet APl598

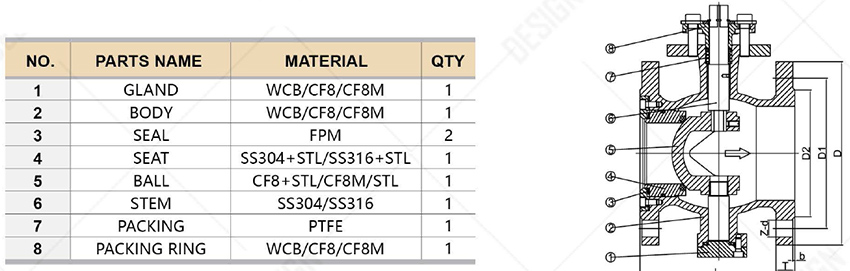

Material List


V-Type-Flanged-Ball-Valves

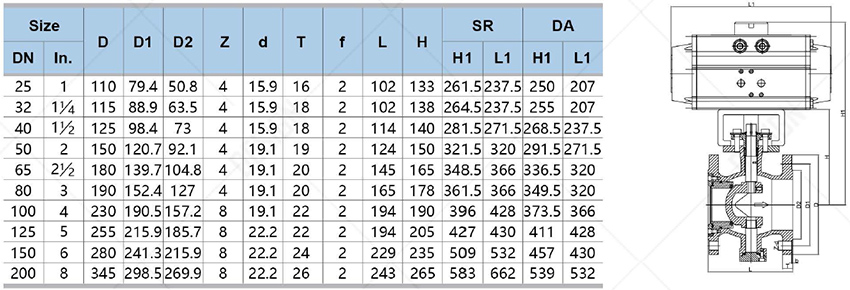

Dimensions


Pneumatically-V-Type-Flanged-Ball-Valves
